NANO-CV-D25501/N26001 EPIC SBC
Page 69

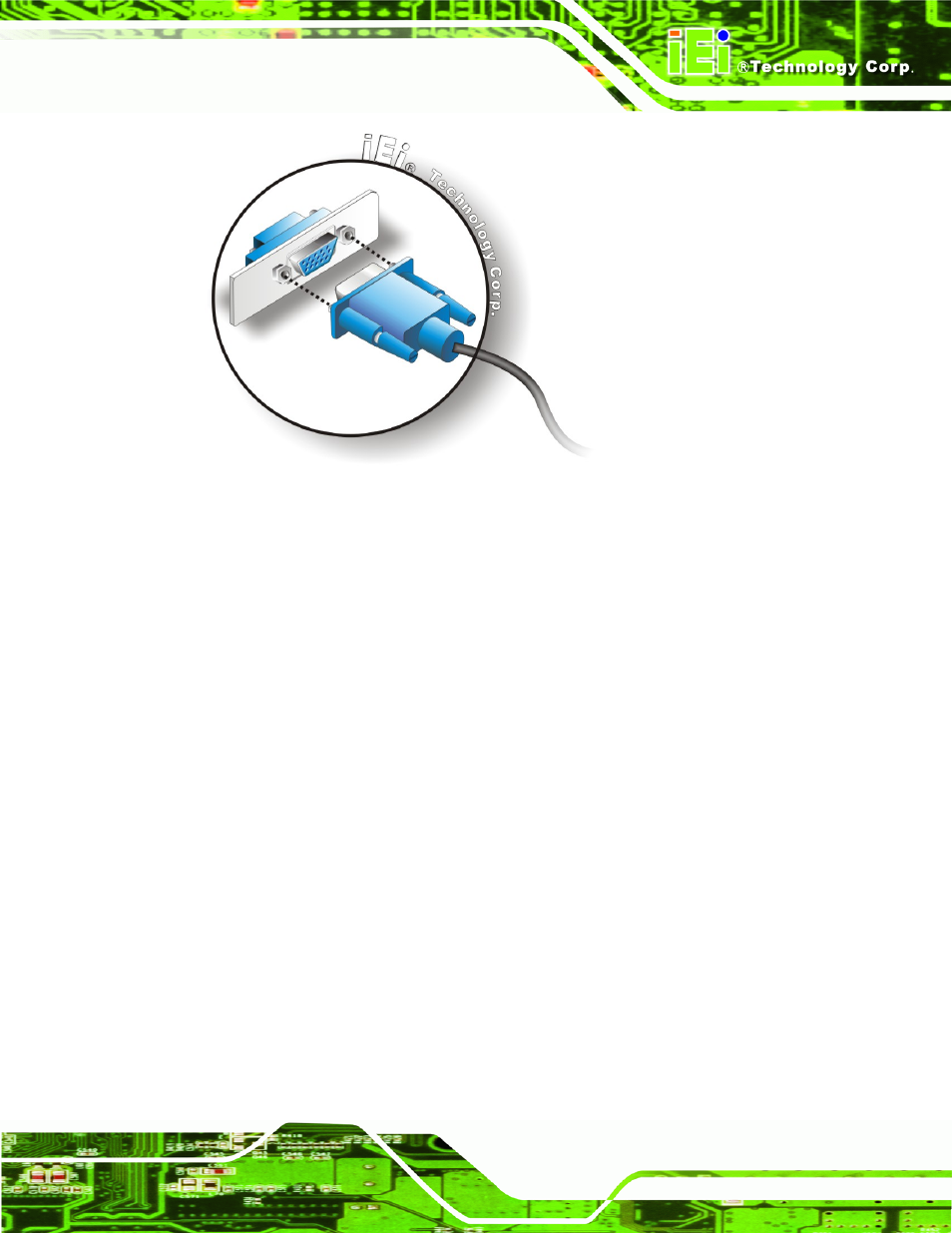

Figure 4-22: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
4.8 Installing USB 3.0 Driver during Windows® 7 OS Installation
If installing the Windows® 7 OS by using the USB 3.0 ports, loading the USB 3.0 driver
during the OS installation is necessary. Follow the instructions below to complete the task.
Step 1: Insert the USB flash drive containing the USB 3.0 driver into one of the USB 2.0
ports on the NANO-CV-D25501/N26001.
Step 2: After clicking the Install now button during the OS installation (Figure 4-23), the
Load Driver screen appears (Figure 4-24). Click Browse.
