NANO-CV-D25501/N26001 EPIC SBC
Page 26
Pin Description Pin Description
1 GND 2 GND
3 LVDS_DATA0 4 LVDS_DATA0#
5 LVDS_DATA1 6 LVDS_DATA1#
7 LVDS_DATA2 8 LVDS_DATA2#
9 LVDS_CLK 10 LVDS_CLK#
11 NC 12 NC
13 GND 14 GND
15 LDDC_DATA 16 LDDC_CLK
17 VCC_LCD 18 VCC_LCD
19 VCC_LCD 20 VCC_LCD
Table 3-12: LVDS1 Connector Pinouts
3.2.11 LVDS2 Connector
CN Label: LVDS2
CN Type: 30-pin crimp
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
The LVDS connector is for an LCD panel connected to the board.

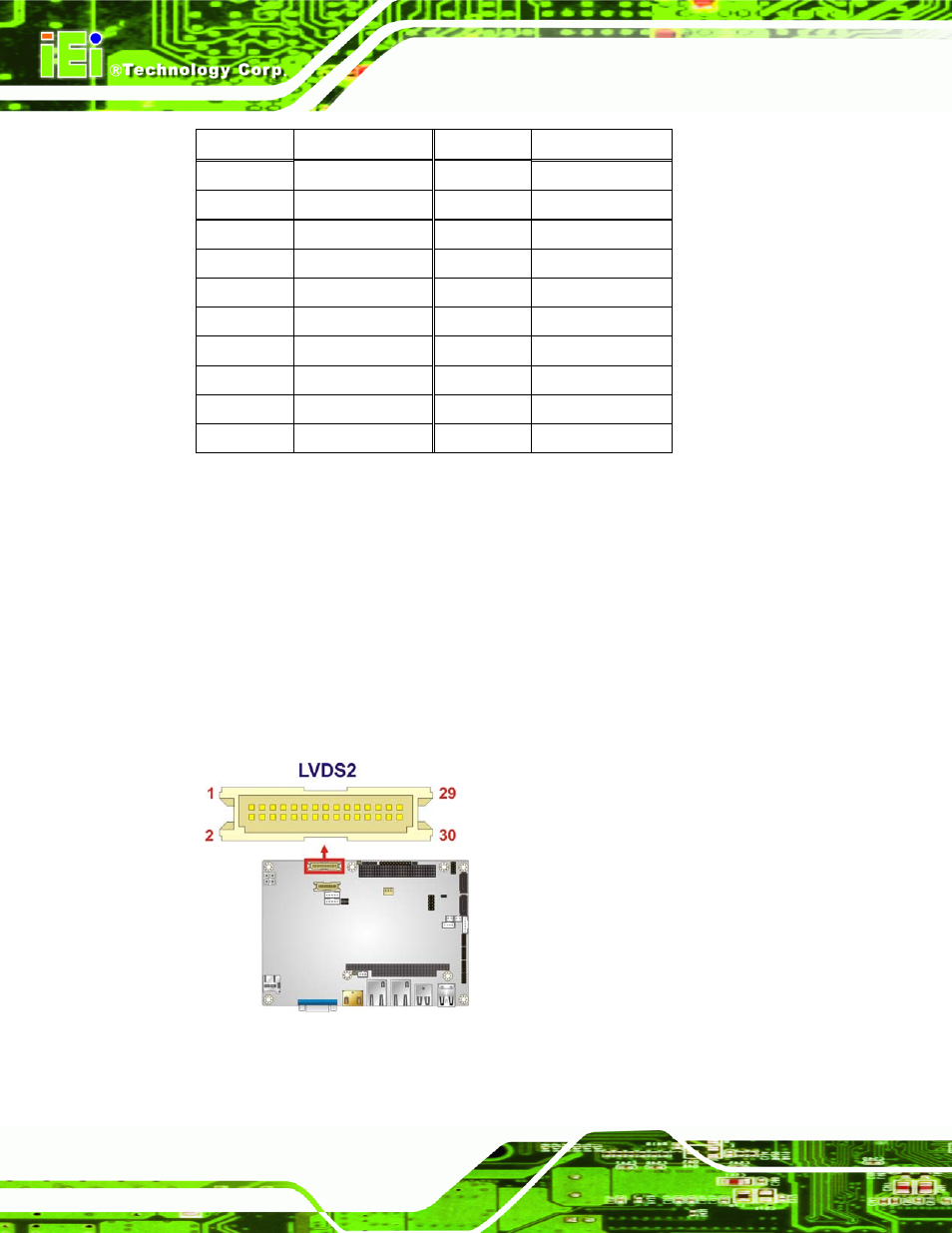

Figure 3-12: LVDS2 Connector Location
