Step 4:

Connect the serial device. Once the single RS-232 connector is connected to

a chassis or bracket, a serial communications device can be connected to the

system.

4.6.8 USB Cable (Dual Port without Bracket)

The NANO-CV-D25501/N26001 is shipped with a dual port USB 2.0 cable. To connect the

USB cable connector, please follow the steps below.

Step 1:

Locate the connector. The location of the USB connector is shown in Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. Correctly align pin 1on the cable connector with pin 1 on

the NANO-CV-D25501/N26001 USB connector.

Step 3:

Insert the cable connectors. Once the cable connector is properly aligned with

the USB connector on the NANO-CV-D25501/N26001, connect the cable

connector to the on-board connector. See Figure 4-18.

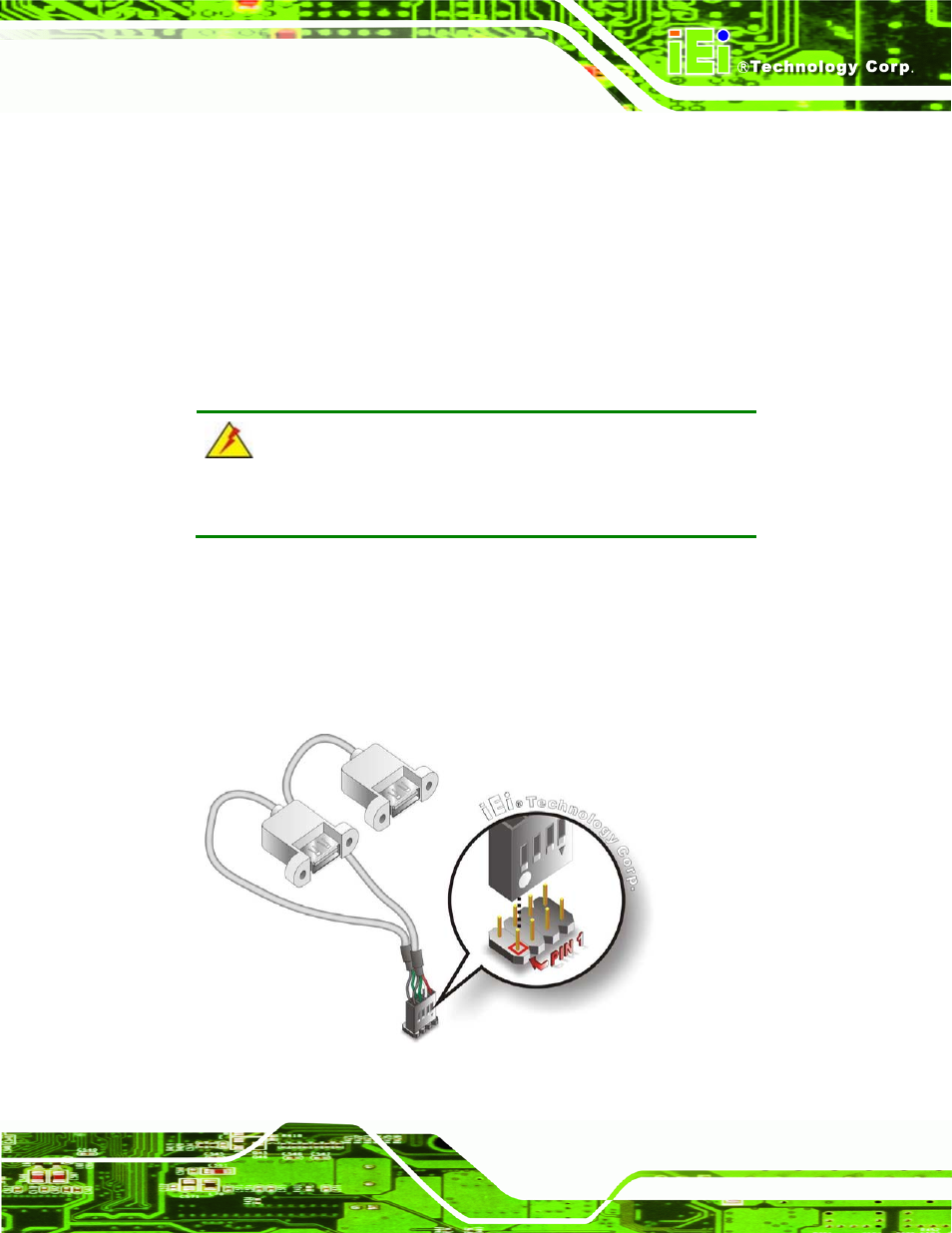

Figure 4-18: Dual USB Cable Connection
