Jumper Settings: See Table 4-2
Jumper Location: See Figure 4-2
The AT/ATX power selection jumper specifies the system power mode as AT or ATX.
Setting Description
Short 1-2 Use ATX power (Default)
Off Use AT power
Table 4-2: AT/ATX Power Selection Jumper Settings

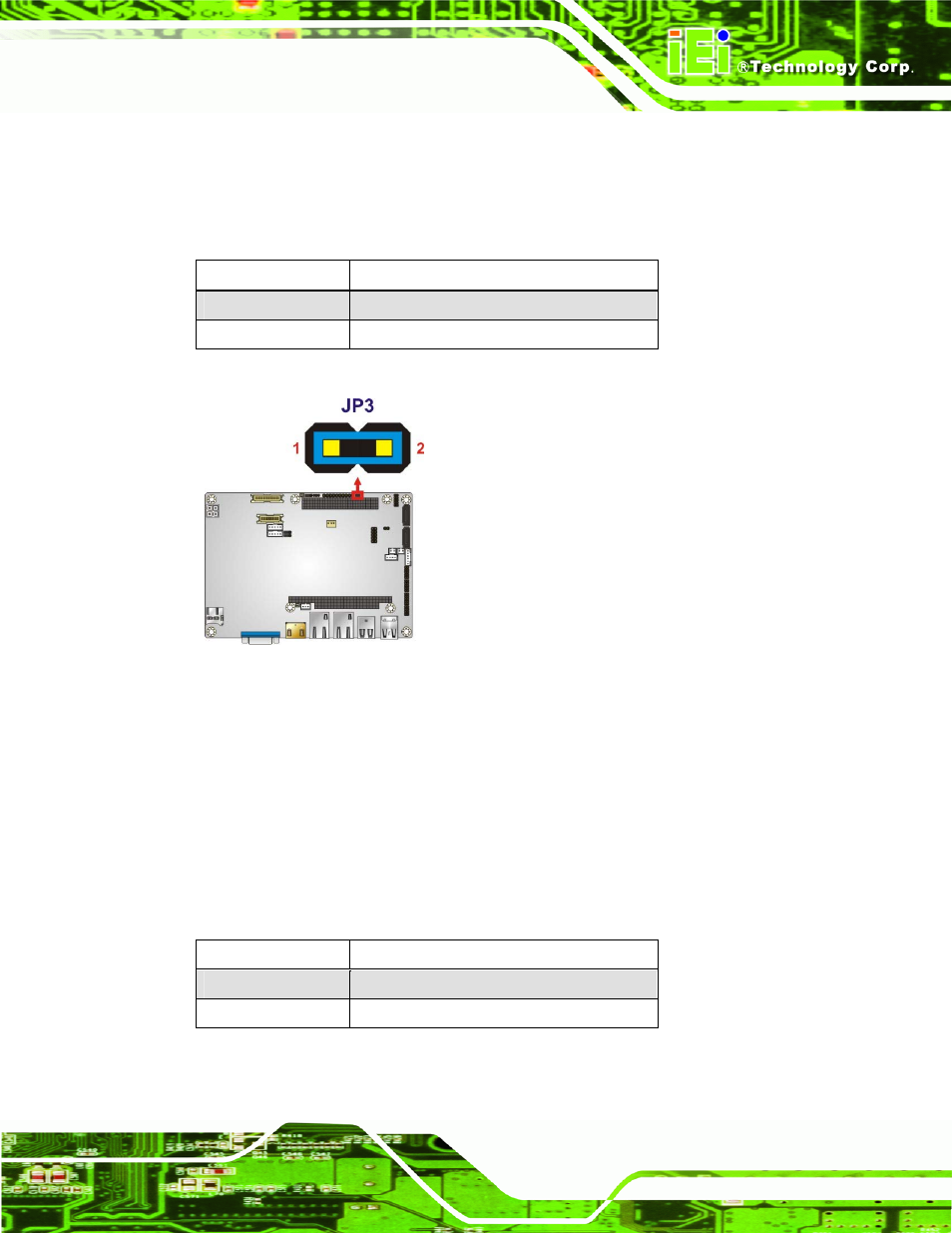

Figure 4-2: AT/ATX Power Selection Jumper Location
4.4.2 Clear CMOS Jumper
Jumper Label: JP1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-3
Jumper Location: See Figure 4-3
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more,
and then move back to the default position.
Setting Description
Short 1-2 Normal (Default)
Short 2-3 Clear BIOS
Table 4-3: Clear CMOS Jumper Settings
