NANO-CV-D25501/N26001 EPIC SBC
Page 25

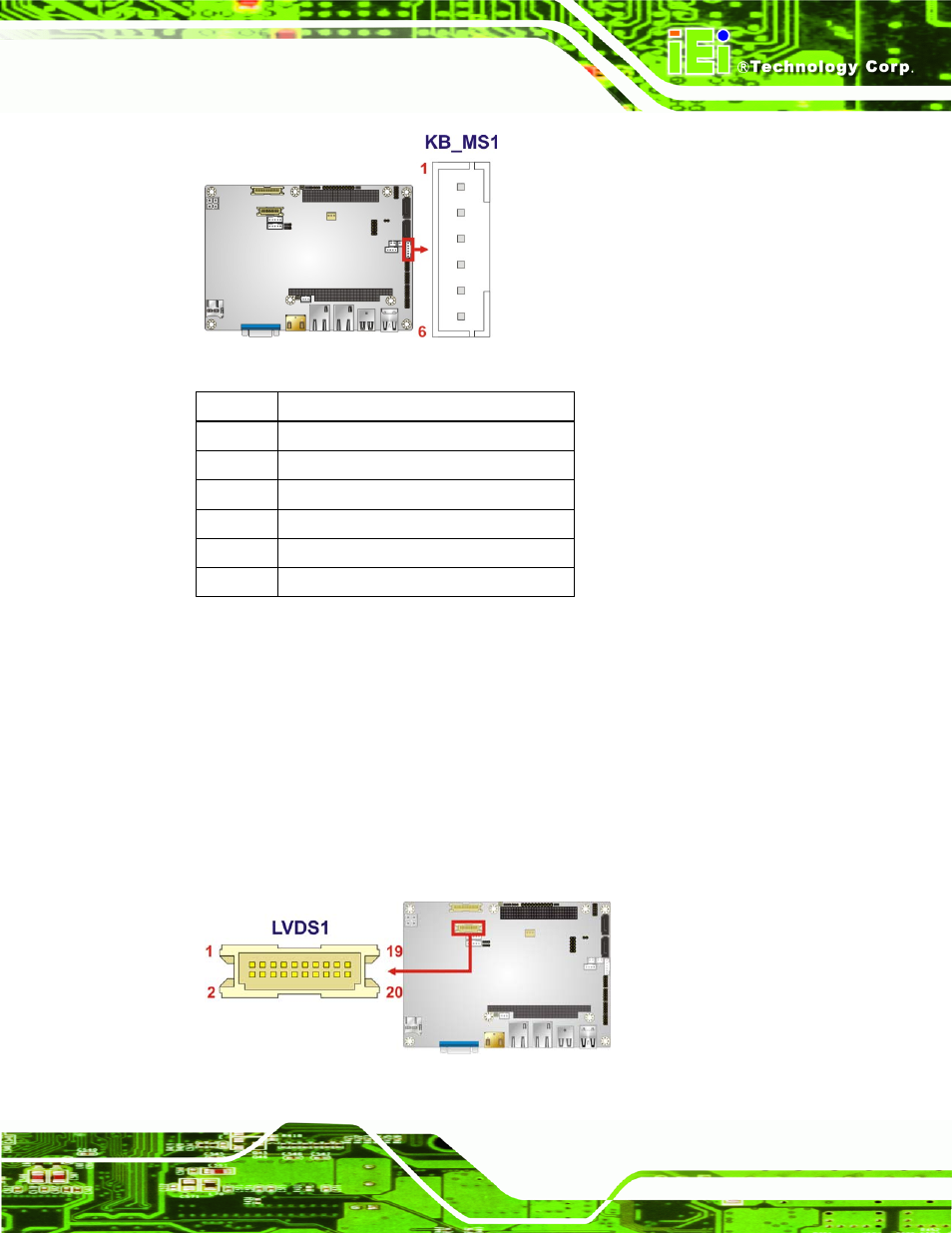

Figure 3-10: Keyboard/Mouse Connector Location
Pin Description
1 VCC
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GND
Table 3-11: Keyboard/Mouse Connector Pinouts
3.2.10 LVDS1 Connector
CN Label: LVDS1
CN Type: 20-pin crimp
CN Location: See Figure 3-11
CN Pinouts: See Table 3-12
The LVDS connector is for an LCD panel connected to the board.
Figure 3-11: LVDS1 Connector Location
