NANO-CV-D25501/N26001 EPIC SBC
Page 63
Step 1: Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the PCIe Mini card into the socket at an angle of about
20º.
Step 2: Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector.
4.6.6 SATA Drive Connection
The NANO-CV-D25501/N26001 is shipped with a SATA drive cable. To connect the SATA
drive to the connector, please follow the steps below.
Step 1: Locate the SATA connector and the SATA power connector. The locations of
the connectors are shown in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector and the SATA power connector. See Figure 4-16.

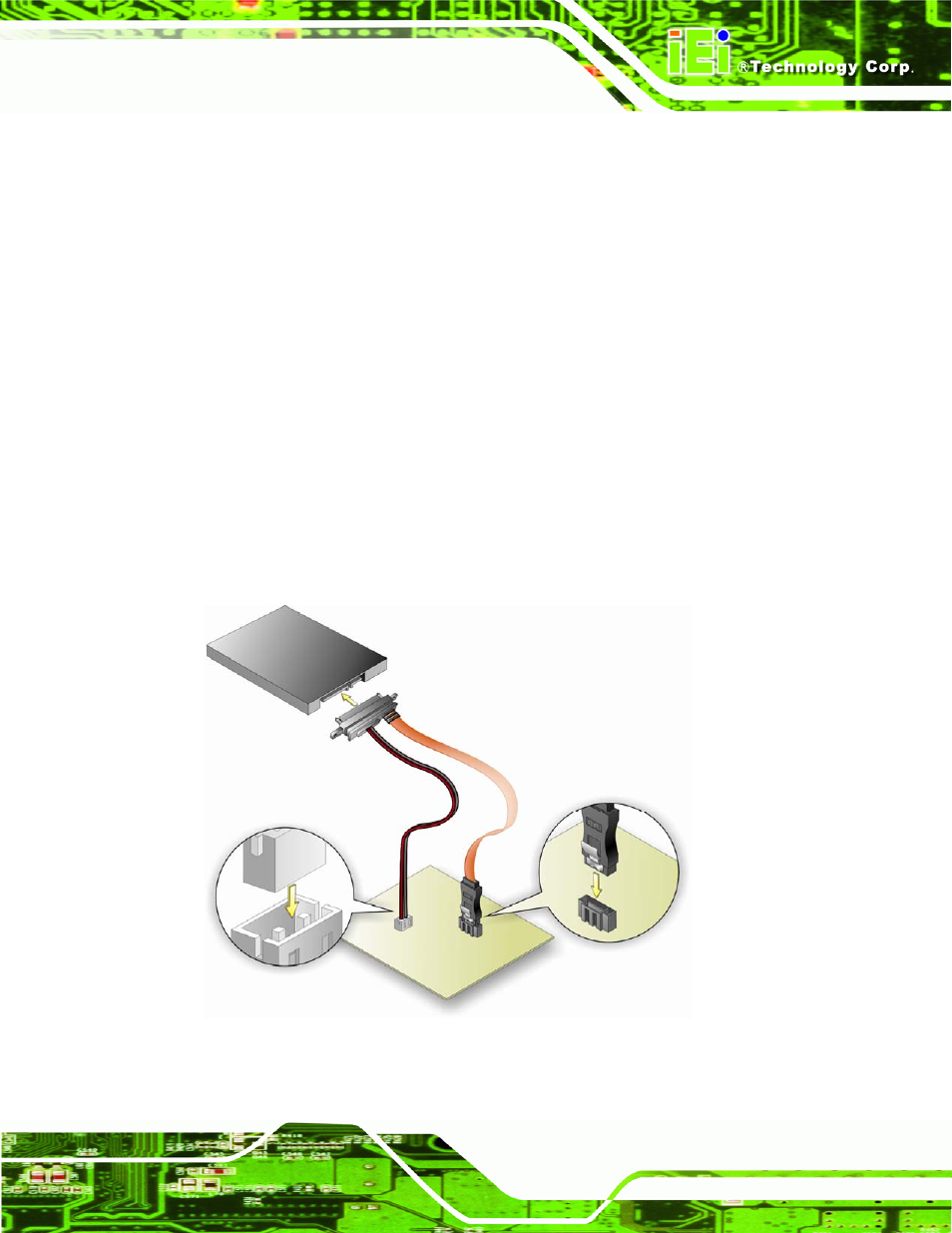

Figure 4-16: SATA Drive Cable Connection
