NANO-CV-D25501/N26001 EPIC SBC

Page 32

3.2.15 PCIe Mini Card Slot

CN Label:

M_PCIE1

CN Type:

52-pin PCIe Mini card slot

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-18

The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to

the board. Cards supported include among others wireless LAN (WLAN) cards and IEI

PCIe Mini disk on module (DOM) SSD cards.

NOTE:

The SATA1 connector will be disabled when an mSATA device is

installed to the M_PCIE1 slot.

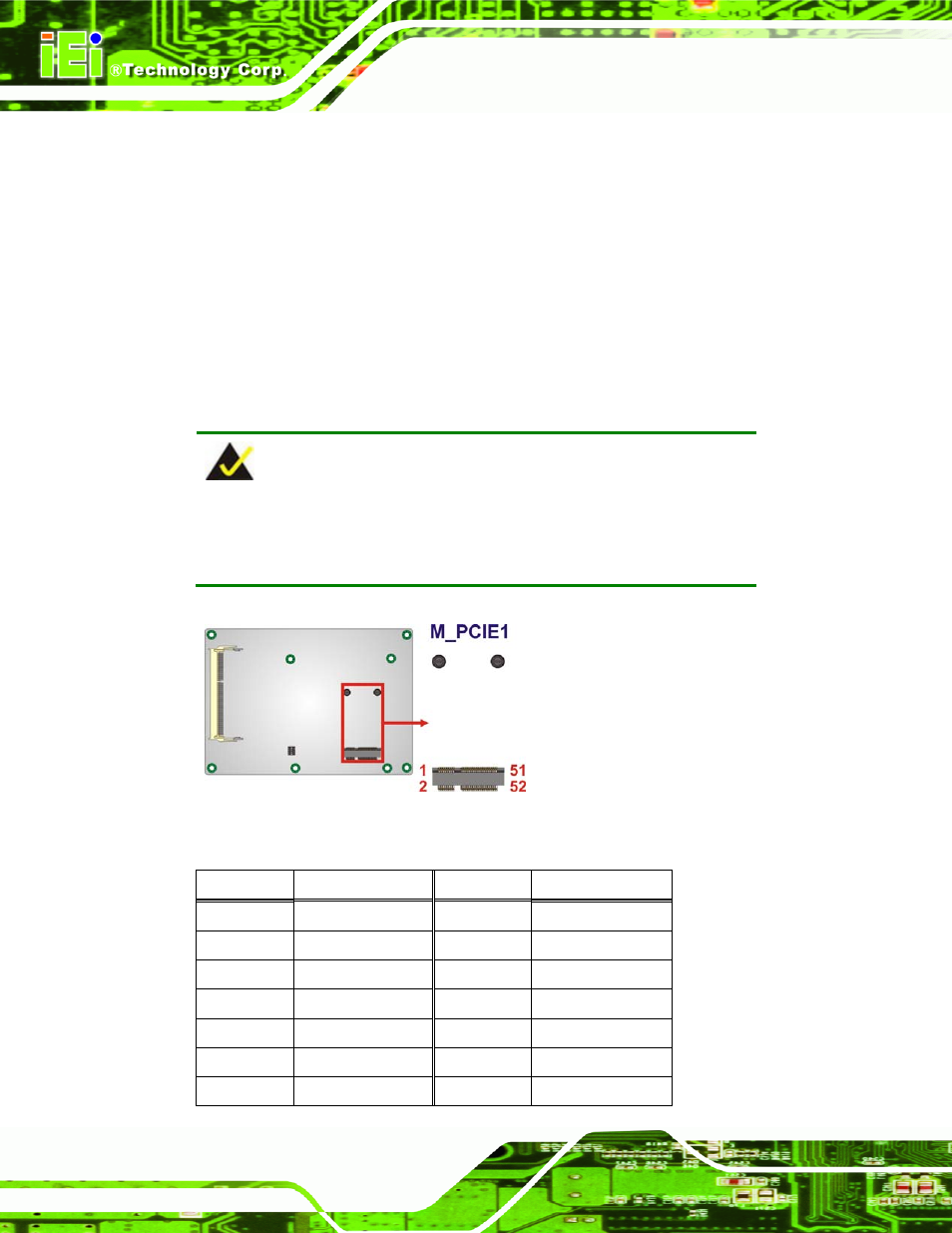

Figure 3-16: PCIe Mini Card Slot Location

Pin Description

1 PCIE_WAKE#

2 VCC3

3 N/C

4 GND

5 N/C

6 1.5V

7 N/C

8 N/C

9 GND

N/C

11 PCIE_CLK#

12 N/C

13 PCIE_CLK 14 N/C
