NANO-CV-D25501/N26001 EPIC SBC
Page 39

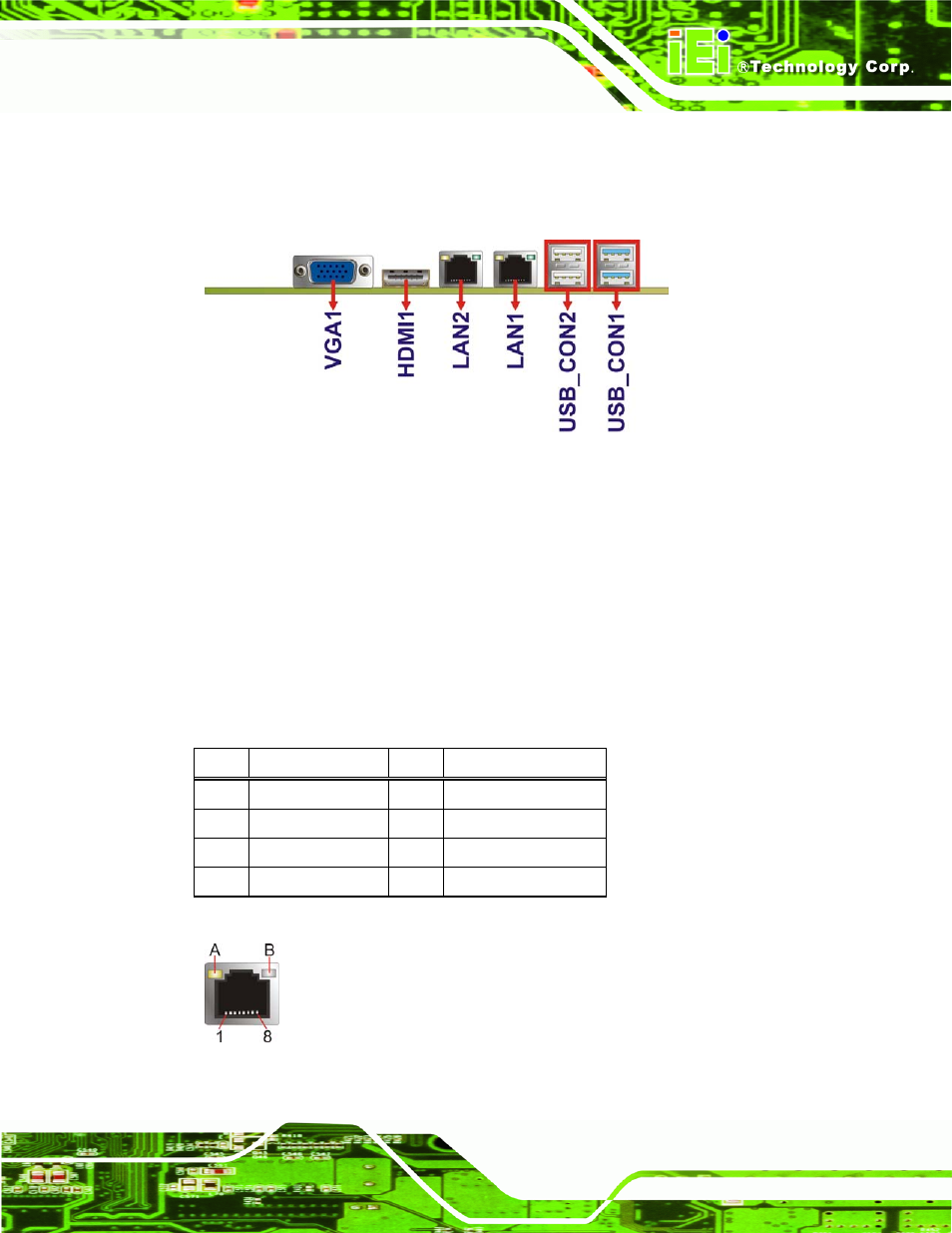

3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
Figure 3-23: External Peripheral Interface Connector
3.3.1 Ethernet Connectors
CN Label: LAN1, LAN2
CN Type: RJ-45 connector
CN Location: See Figure 3-23
CN Pinouts: See Table 3-25
The NANO-CV-D25501/N26001 is equipped with two built-in RJ-45 Ethernet controllers.
Each controller can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDI0+ 5 MDI2+
2 MDI0- 6 MDI2-
3 MDI1+ 7 MDI3+
4 MDI1- 8 MDI3-
Table 3-25: LAN Pinouts
Figure 3-24: RJ-45 Ethernet Connector
