NANO-CV-D25501/N26001 EPIC SBC

Page 5

1.5 Dimensions

The main dimensions of the NANO-CV-D25501/N26001 are shown in the diagram below.

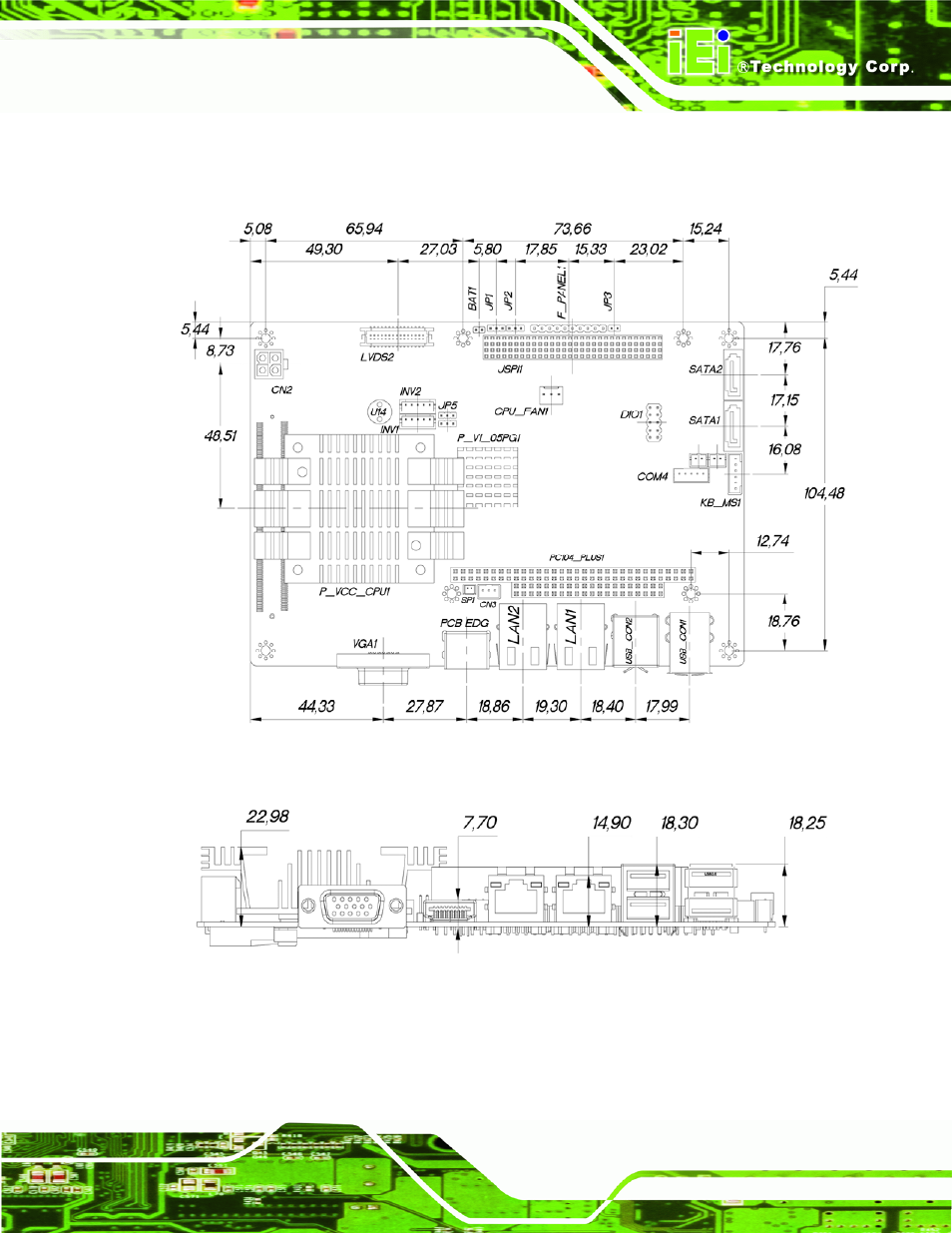

Figure 1-3: NANO-CV-D25501/N26001 Dimensions (mm)

.

Figure 1-4: External Interface Panel Dimensions (mm)
