NANO-CV-D25501/N26001 EPIC SBC
Page 19
3.2.3 Backlight Inverter Connectors
CN Label: INV1, INV2
CN Type: 5-pin wafer
CN Location: See Figure 3-4
CN Pinouts: See Table 3-5
The backlight inverter connectors provide the backlight on the LCD display connected to
the NANO-CV-D25501/N26001 with +12V of power.

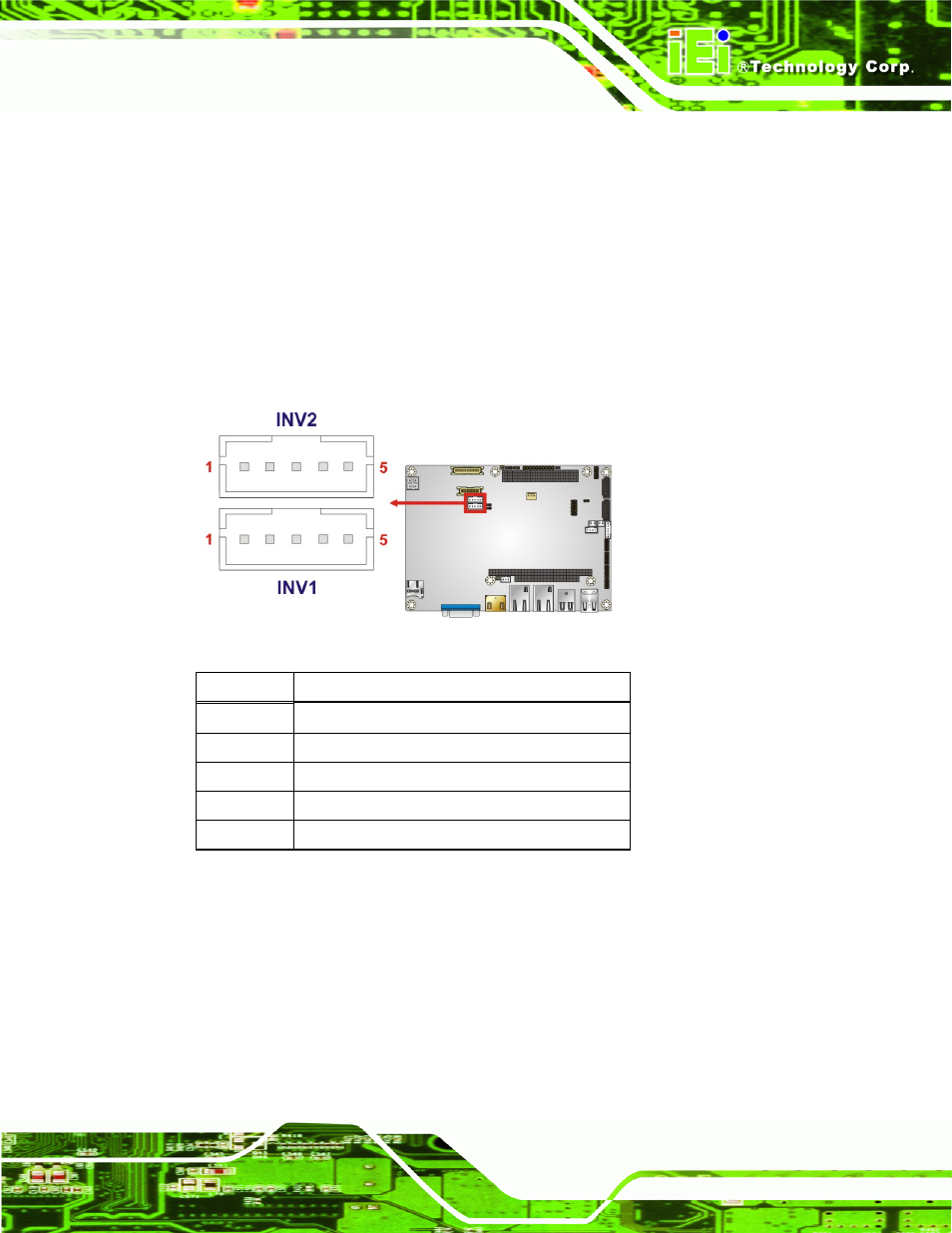

Figure 3-4: Backlight Inverter Connector Locations
Pin Description
1 LCD_BKLTCTL
2 GROUND
3
+12V
4 GROUND
5 BACKLIGHT ENABLE
Table 3-5: Backlight Inverter Connector Pinouts
