Step 4: Attach the USB connectors to the chassis. Each of the USB 2.0 connectors
has two retention screw holes. To secure the connectors to the chassis, please
refer to the installation instructions that came with the chassis. Step 0:
4.7 External Peripheral Interface Connection
This section describes connecting devices to the external connectors on the
NANO-CV-D25501/N26001.
4.7.1 HDMI Display Device Connection
The HDMI connector transmits a digital signal to compatible HDMI display devices such as a
TV or computer screen. To connect the HDMI cable to the NANO-CV-D25501/N26001,
follow the steps below.
Step 1: Locate the HDMI connector. The location is shown in Chapter 3.
Step 2: Align the connector. Align the HDMI connector with the HDMI port. Make sure
the orientation of the connector is correct.

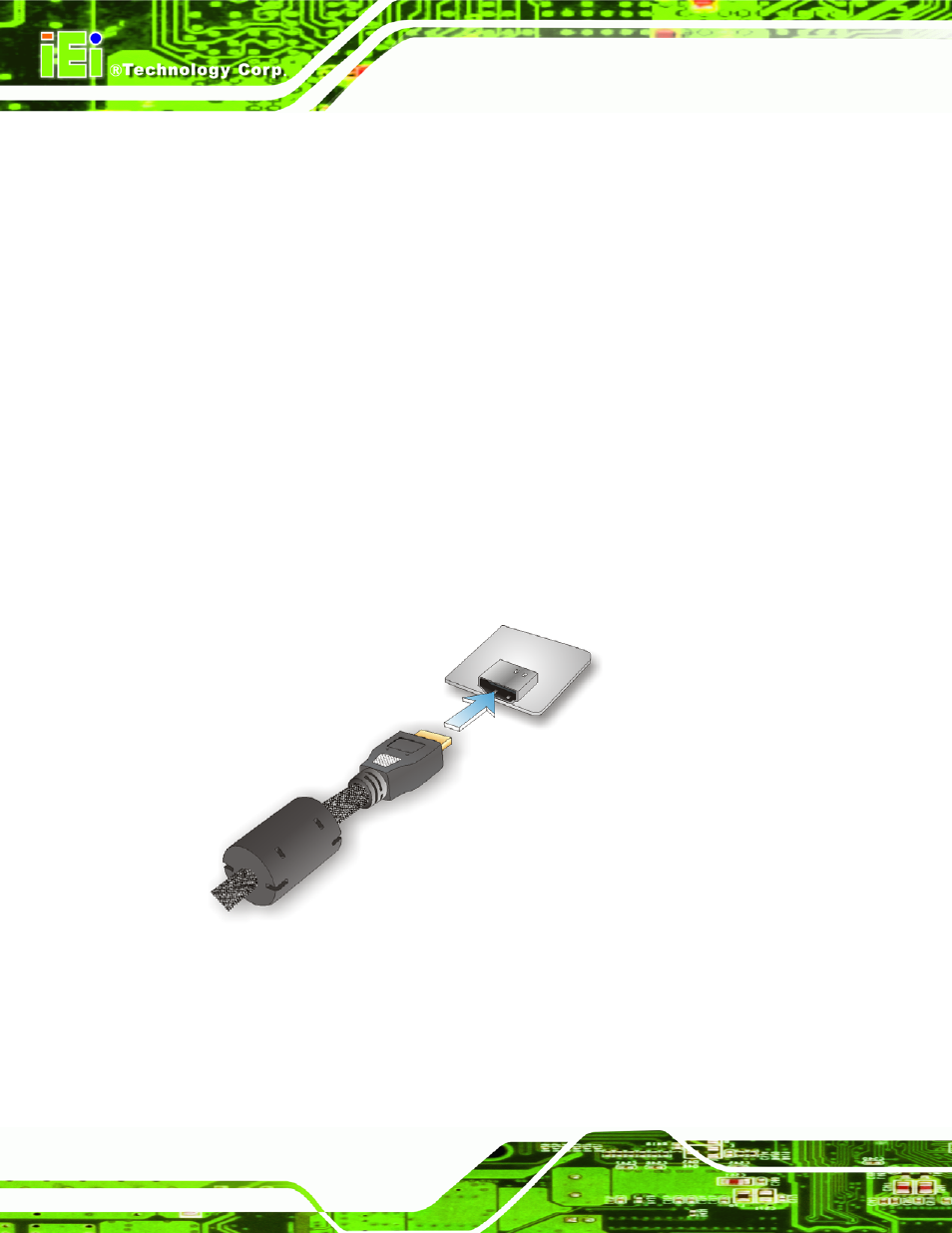

Figure 4-19: HDMI Connection
Step 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector
should engage with a gentle push. If the connector does not insert easily, check
again that the connector is aligned correctly, and that the connector is being
inserted with the right way up. Step 0:
