NANO-CV-D25501/N26001 EPIC SBC

Page 23

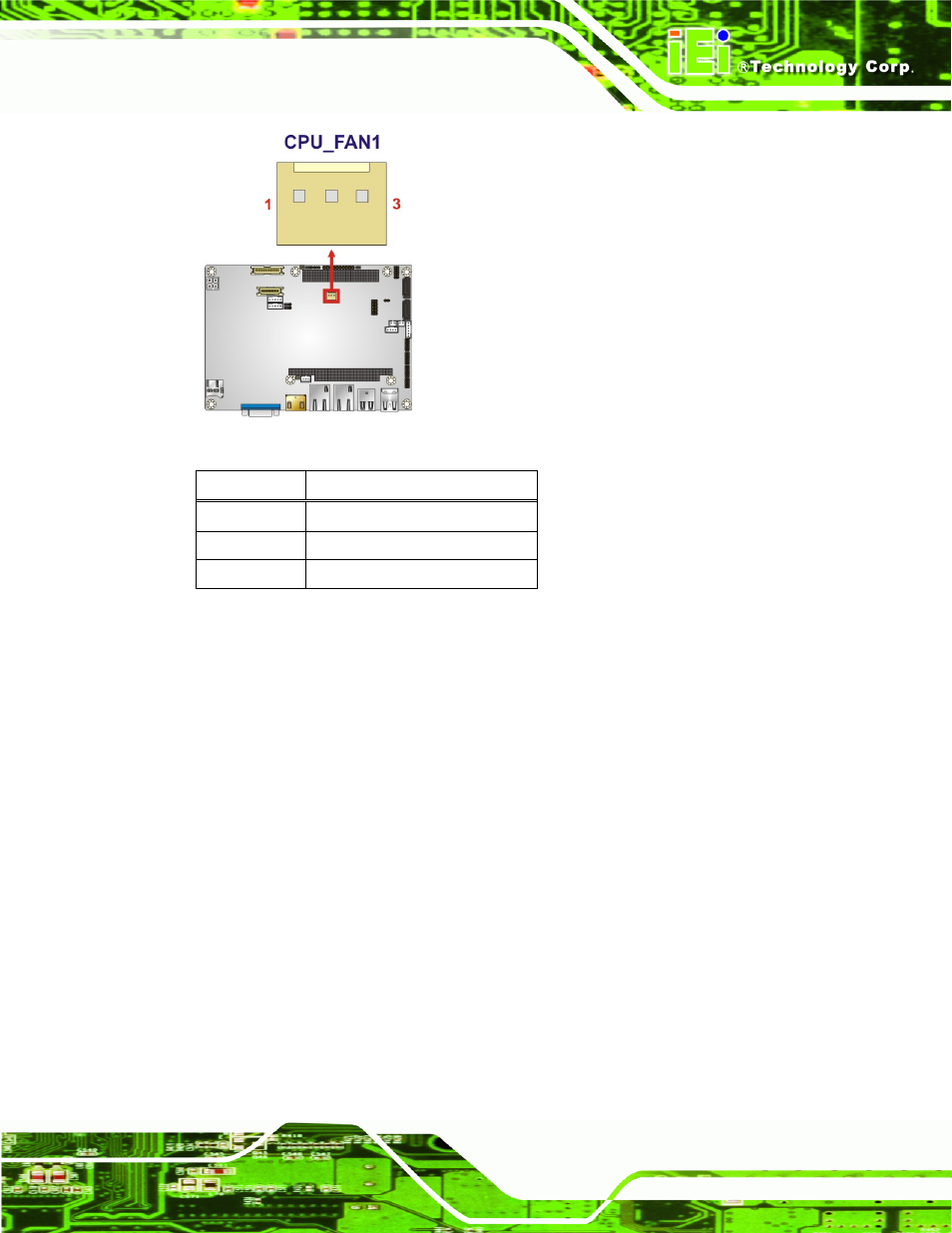

Figure 3-8: Fan Connector Location

PIN NO.

DESCRIPTION

1

FANIO

2

+12V (PWM)

3

Ground

Table 3-9: Fan Connector Pinouts

3.2.8 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

10-pin header

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.
