NANO-CV-D25501/N26001 EPIC SBC
Page 34

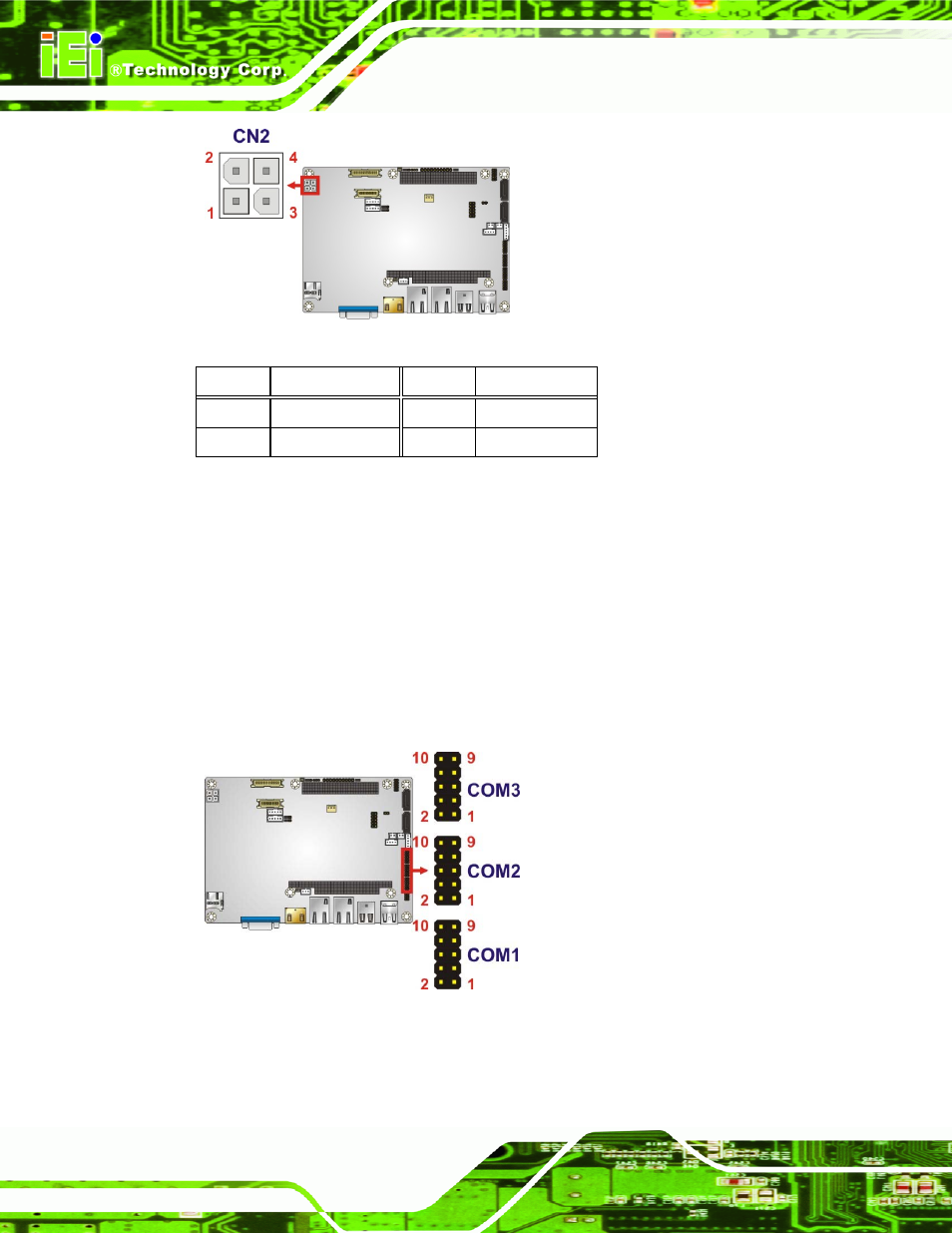

Figure 3-17: Power Connector Location
Pin Description Pin Description
1 GND 2 GND
3 PWR 4 PWR
Table 3-19: Power Connector Pinouts
3.2.17 RS-232 Serial Port Connectors
CN Label: COM1, COM2, COM3
CN Type: 10-pin header
CN Location: See Figure 3-18
CN Pinouts: See Table 3-20
Each of these connectors provides RS-232 connections.
Figure 3-18: RS-232 Serial Port Connector Locations
