Figure 4-7: mSATA/PCIe Mini Mode Selection Jumper Location
4.4.7 PC/104-Plus VIO Voltage Selection
Jumper Label: JP2
Jumper Type: 3-pin header
Jumper Settings: See Table 4-8
Jumper Location: See Figure 4-8
This jumper selects the PC/104-Plus VIO voltage to VCC or VCC3.
Setting Description
Short 1-2 VCC
Short 2-3 VCC3
Table 4-8: PC/104-Plus VIO Voltage Selection Jumper Settings

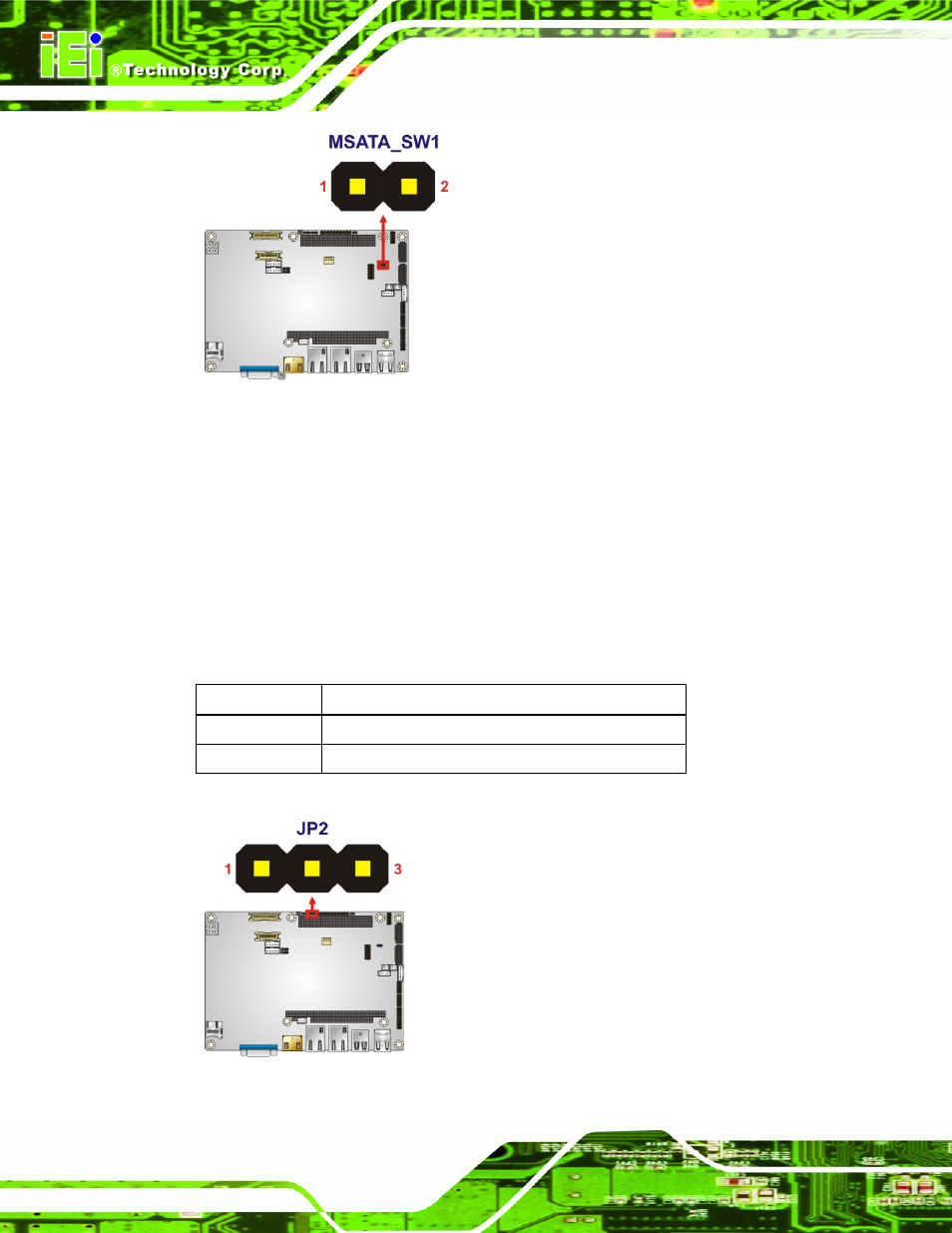

Figure 4-8: PC/104-Plus VIO Voltage Selection Jumper Location
