NANO-CV-D25501/N26001 EPIC SBC
Page 53
1100 1680 x 1050 @ 60Hz 24-bit Dual
1101 1600 x 1200 @ 60Hz 24-bit Dual
1110 1920 x 1080 @ 60Hz 24-bit Dual
1111 1920 x 1200 @ 60Hz 24-bit Dual
Table 4-6: LVDS2 Resolution Selection

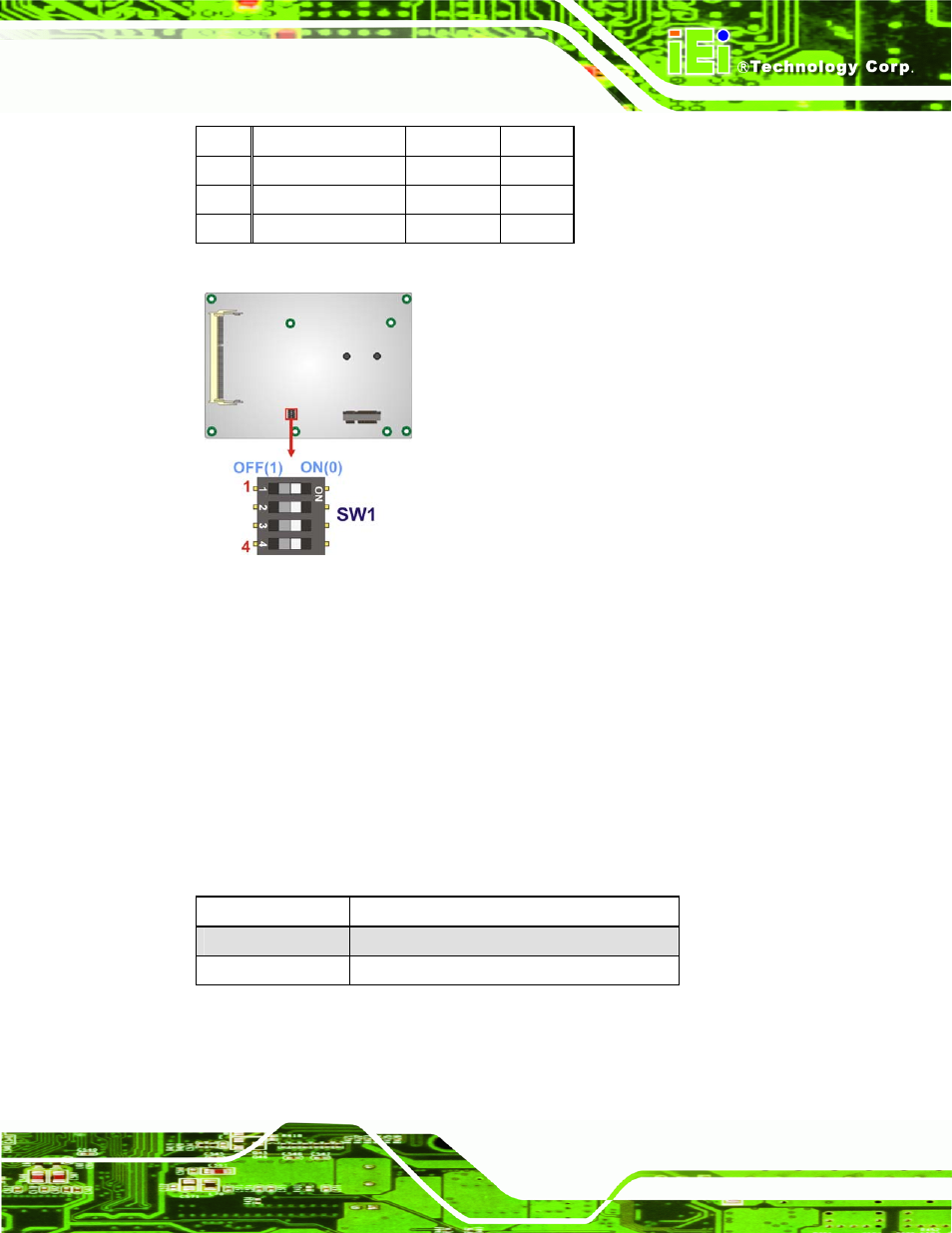

Figure 4-6: LVDS2 Resolution Selection Jumper Location
4.4.6 mSATA/PCIe Mini Mode Selection
Jumper Label: MSATA_SW1
Jumper Type: 2-pin header
Jumper Settings: See Table 4-7
Jumper Location: See Figure 4-7
The jumper configures the PCIe Mini slot (M_PCIE1) to automatically detect mSATA
device or to force mSATA to be enabled.
Setting Description
Short 1-2 Auto-detect mSATA device (Default)
Off Enable mSATA
Table 4-7: mSATA/PCIe Mini Mode Selection Jumper Settings
