Page 83

NANO-CV-D25501/N26001 EPIC SBC

Page 68

Step 2:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See

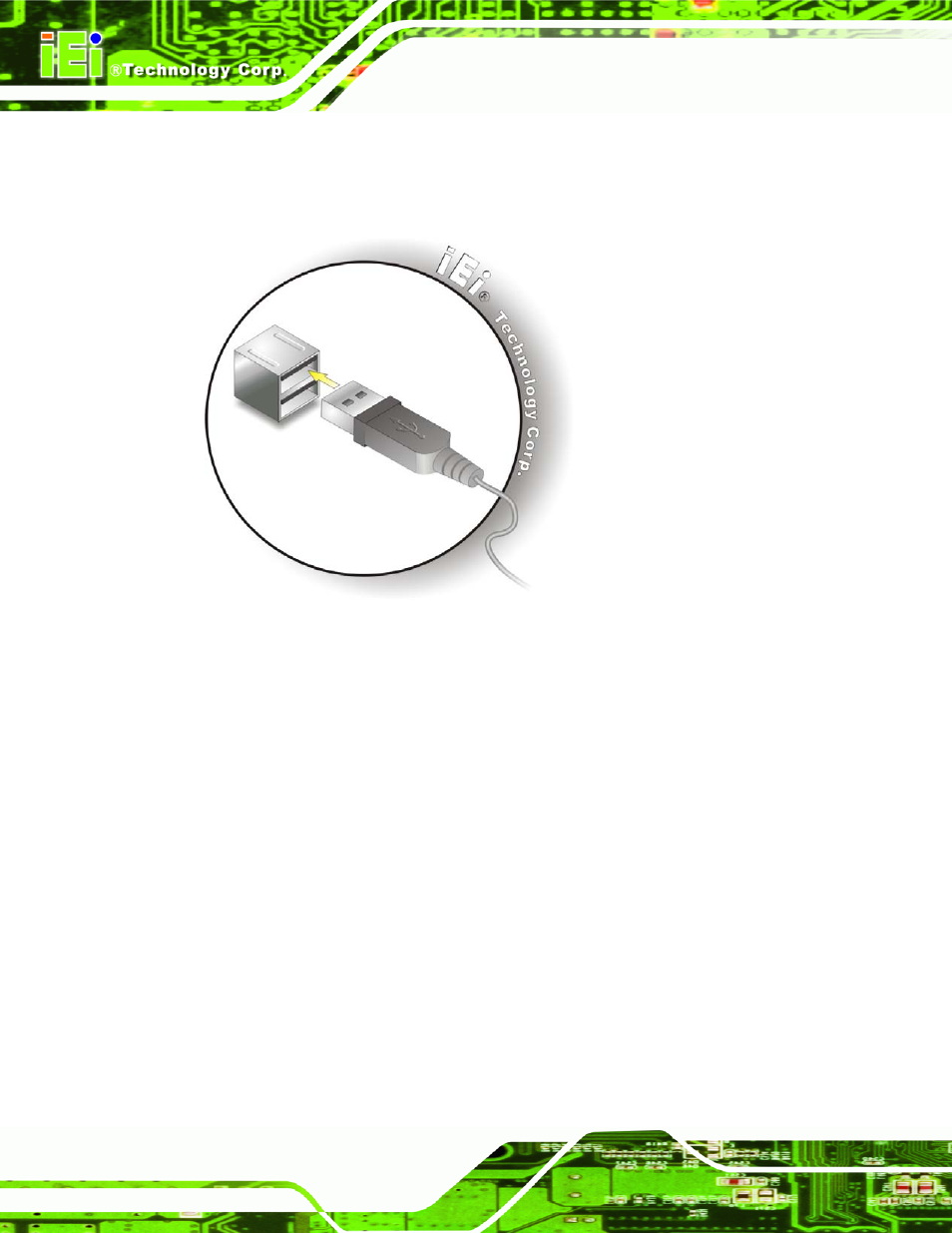

Figure 4-21: USB Connector

4.7.4 VGA Monitor Connection

The NANO-CV-D25501/N26001 has one female DB-15 connector on the external

peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor.

To connect a monitor to the NANO-CV-D25501/N26001, please follow the instructions

below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector.

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the
