3.2.4 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

CN Label:

BAT1

CN Type:

2-pin wafer

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

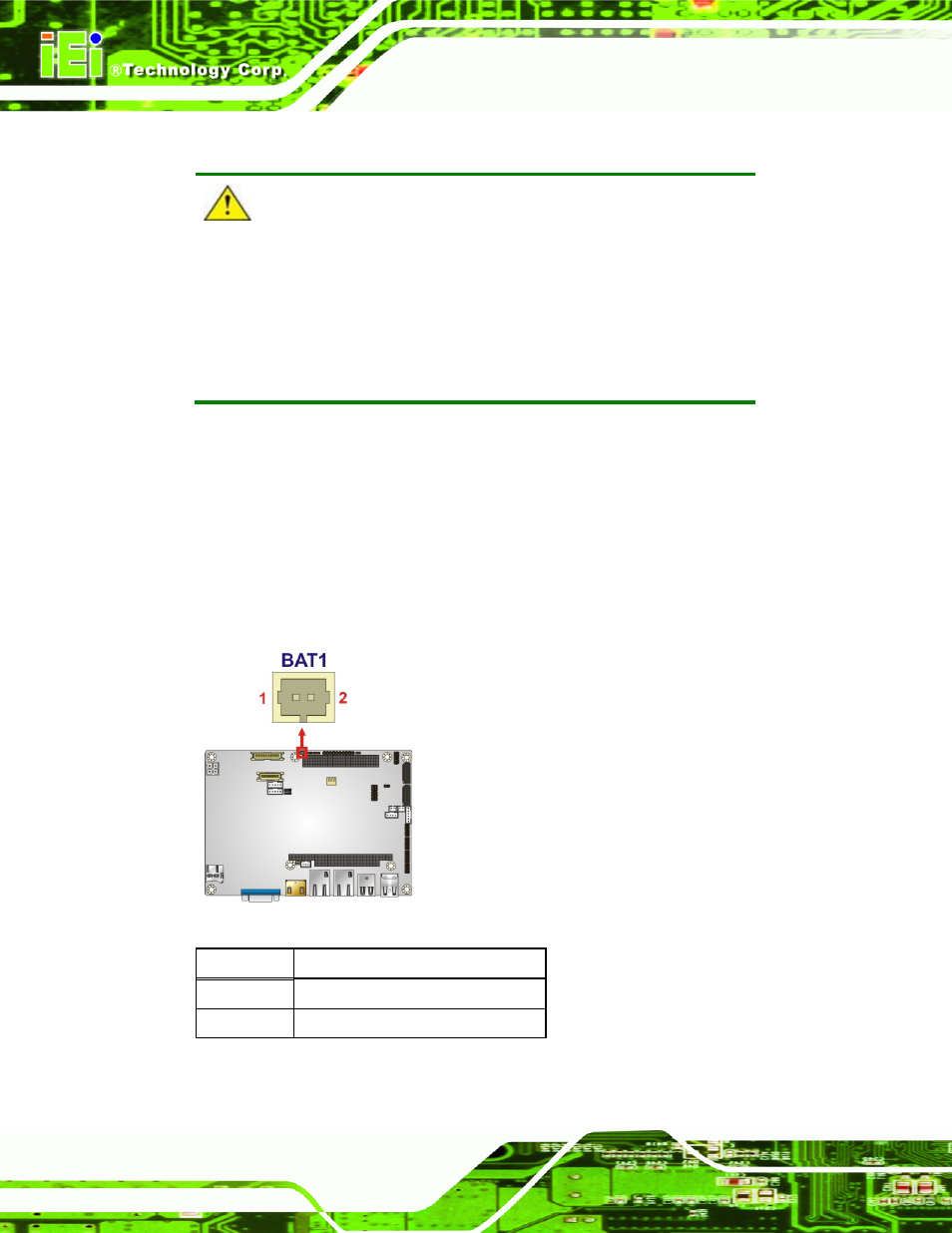

Figure 3-5: Battery Connector Location

Pin Description

1 Battery+

2 GND

Table 3-6: Battery Connector Pinouts
