NANO-CV-D25501/N26001 EPIC SBC
Page 36
Pin Description Pin Description
1 RXD422- 3 TXD422+/TXD485+
2 RXD422+ 4 TXD422-/TXD485-
Table 3-21: RS-422/485 Connector Pinouts
Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9
connector are listed below.

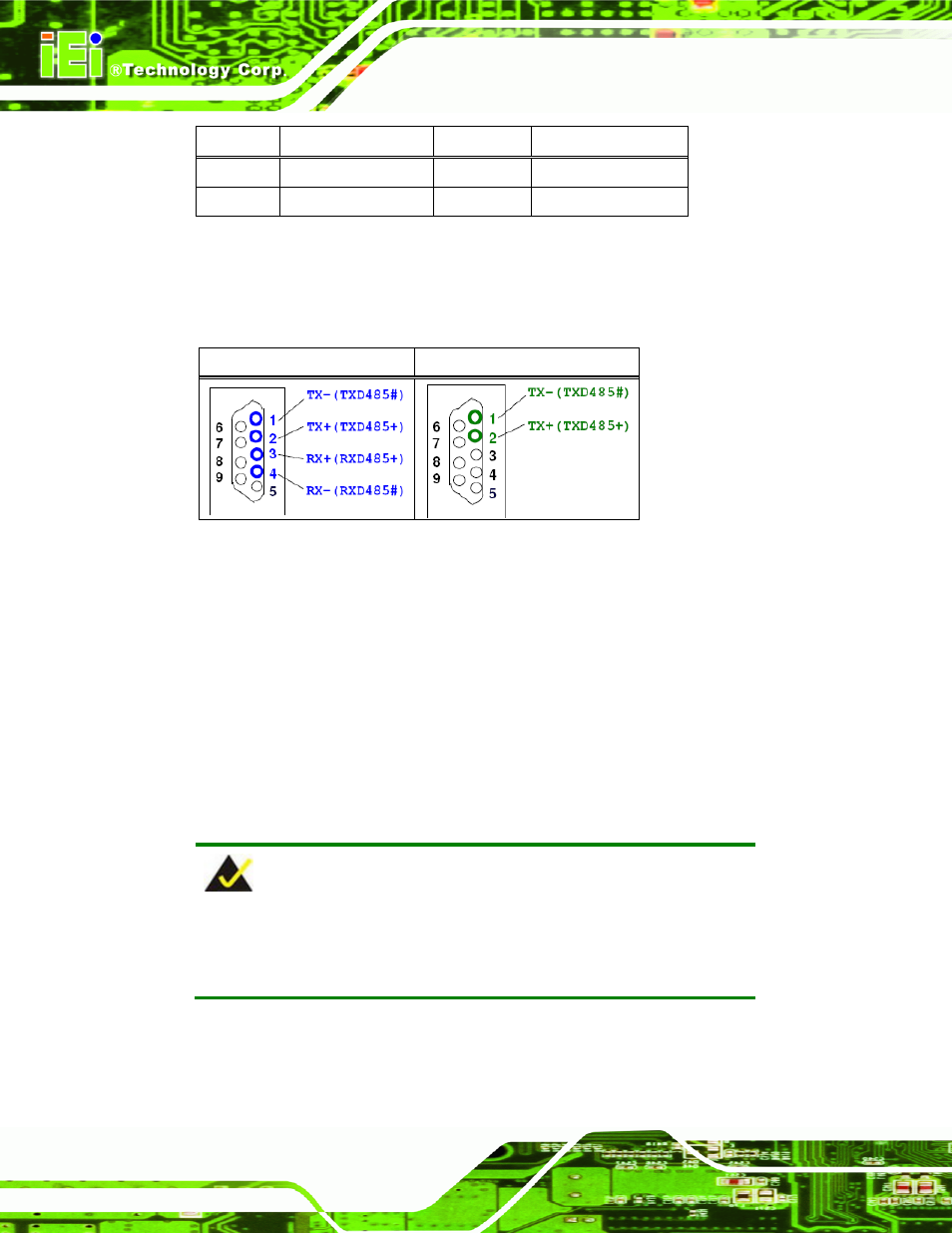

RS-422 Pinouts RS-485 Pinouts
Table 3-22: DB-9 RS-422/485 Pinouts
3.2.19 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type: 7-pin SATA drive connector
CN Location: See Figure 3-20
CN Pinouts: See Table 3-23
The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s
data transfer rate.
NOTE:
The SATA1 connector will be disabled when an mSATA device is
installed to the M_PCIE1 slot.
