NANO-CV-D25501/N26001 EPIC SBC

Page 38

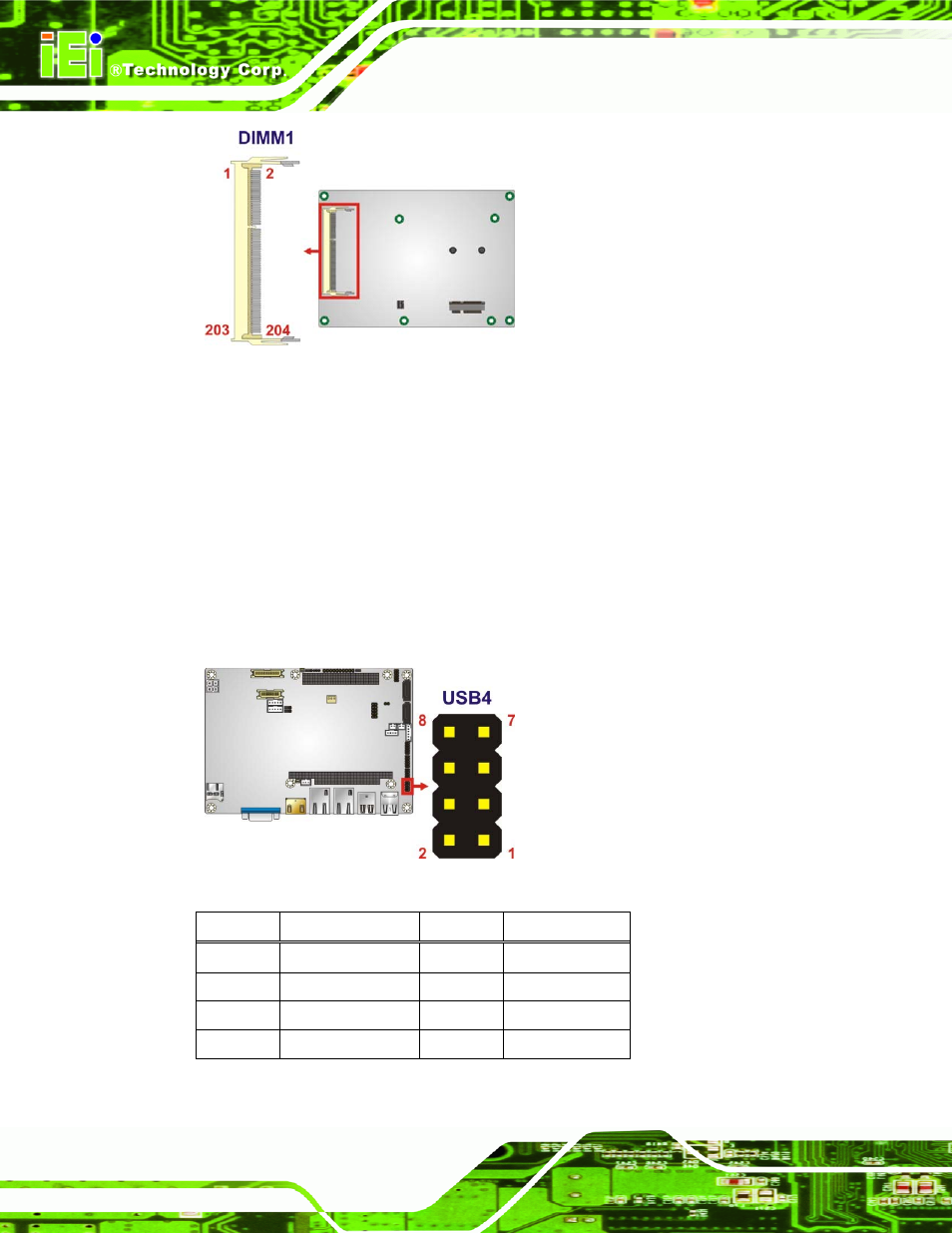

Figure 3-21: SO-DIMM Connector Location

3.2.21 USB Connector

CN Label:

USB4

CN Type:

8-pin header

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-24

The USB connector provides connectivity to two USB 1.1/2.0 ports.

Figure 3-22: USB Connector Location

Pin

Description

Pin

Description

1

USB_VCC

2

GND

3

DATA-

4

DATA+

5

DATA+

6

DATA-

7

GND

8

USB_VCC

Table 3-24: USB Connector Pinouts
