NANO-CV-D25501/N26001 EPIC SBC
Page 28
Pin Description
1
DAT2
2 DAT3
3 CMD
4 VDD
5 CLK
6
VSS1
7
DAT0
8
DAT1
Table 3-14: microSD Card Slot Connector Pinouts
3.2.13 PC/104-Plus Slot
CN Label: PC104_PLUS1, CN8
CN Type: 104-pin ISA bus and 120-pin PCI bus
CN Location: See Figure 3-14
CN Pinouts: See Table 3-15 and Table 3-16
The PC/104-Plus slot is for installing a PC/104-Plus expansion module.

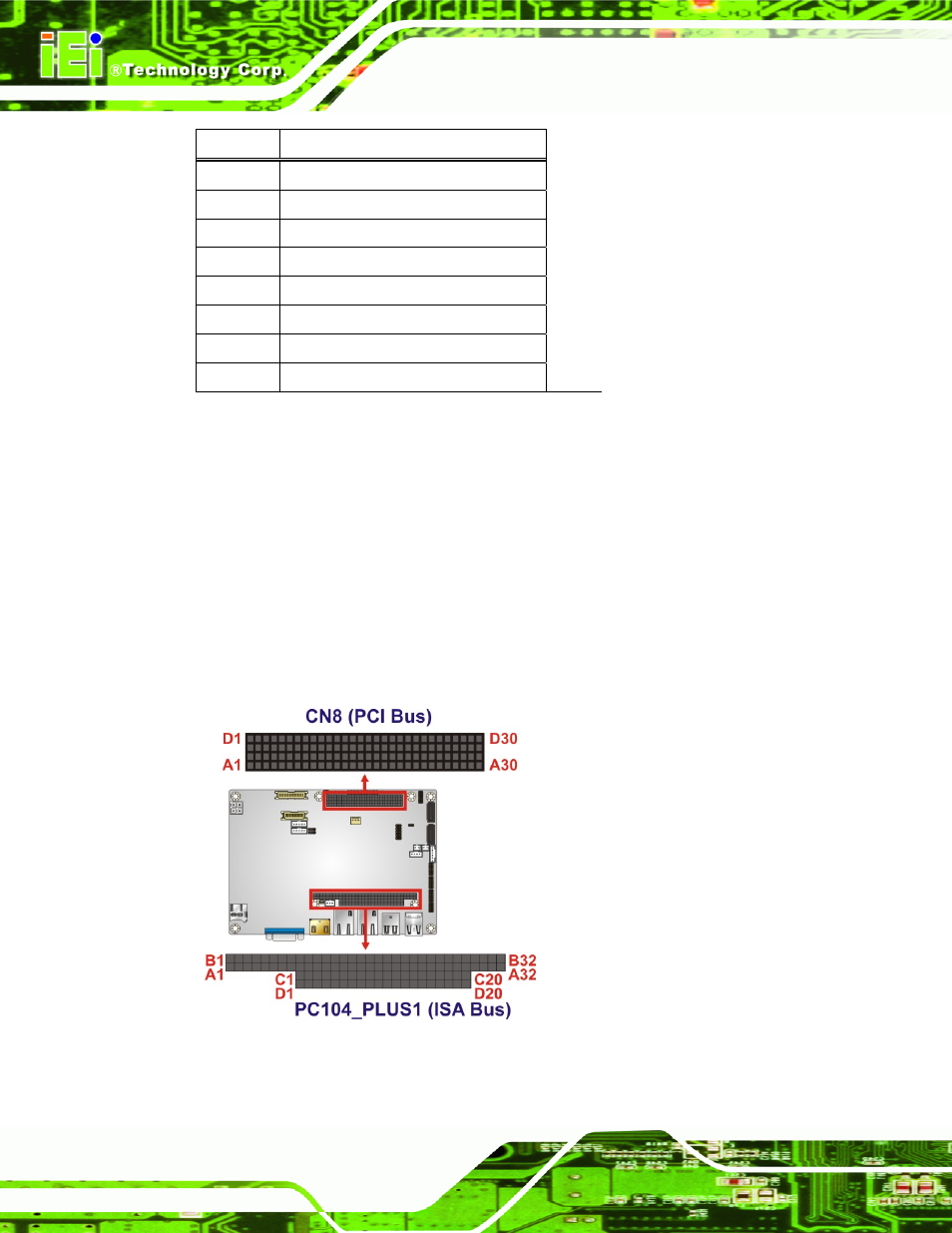

Figure 3-14: PC/104-Plus Slot Location
