IMB-Q870-i2 microATX Motherboard
Page 75

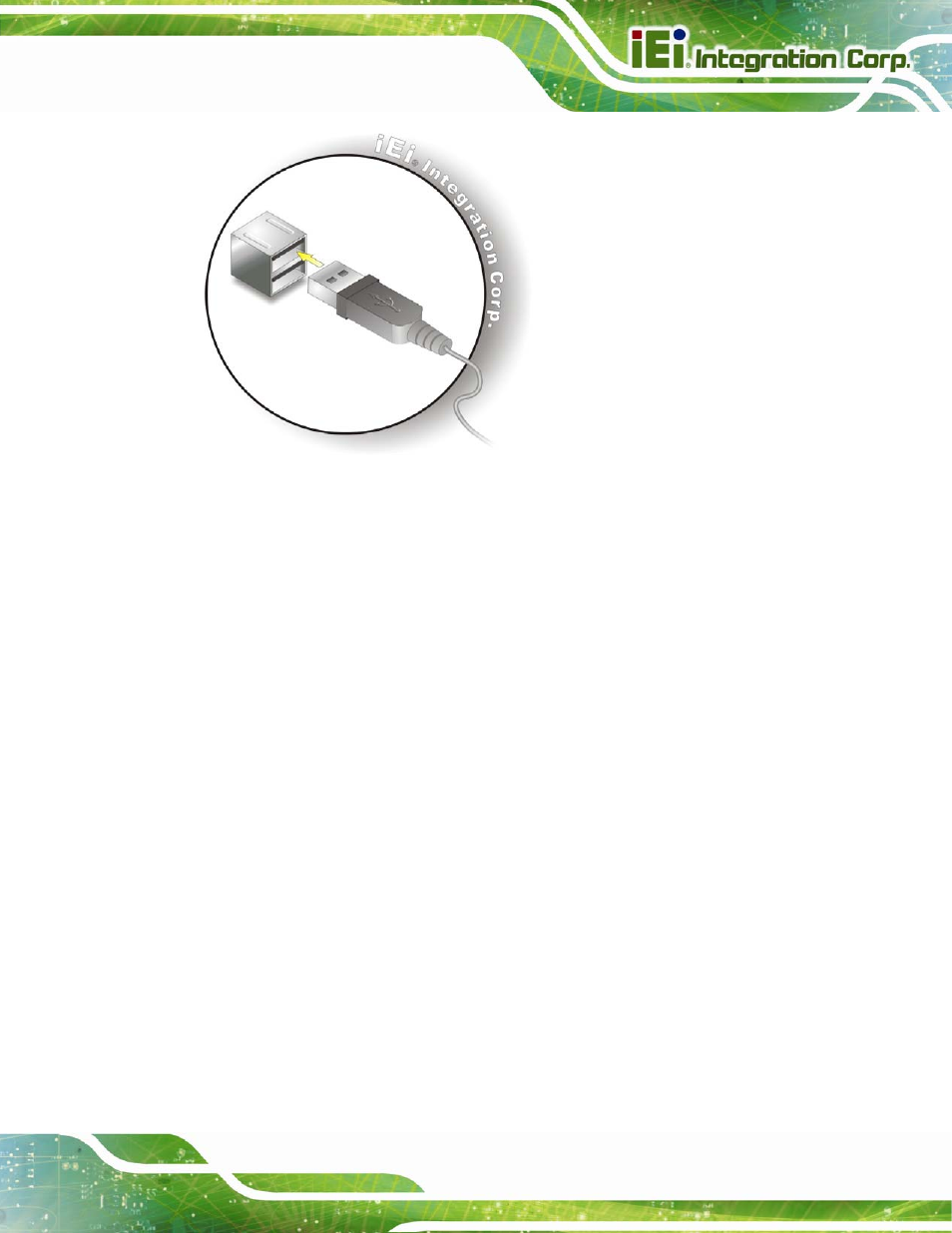

Figure 4-20: USB Connector
4.5.8 VGA Monitor Connection
The IMB-Q870-i2 has a single female DB-15 connector on the external peripheral
interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect
a monitor to the IMB-Q870-i2, please follow the instructions below.
Step 1: Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
IMB-Q870-i2. See Figure 4-21.
