IMB-Q870-i2 microATX Motherboard

Page 58

Step 6:

Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.

Carefully match the two orientation notches on the CPU with the socket

alignment keys.

Step 7:

Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are

properly aligned, the CPU should slide into the CPU socket smoothly. See

Figure 4-3.

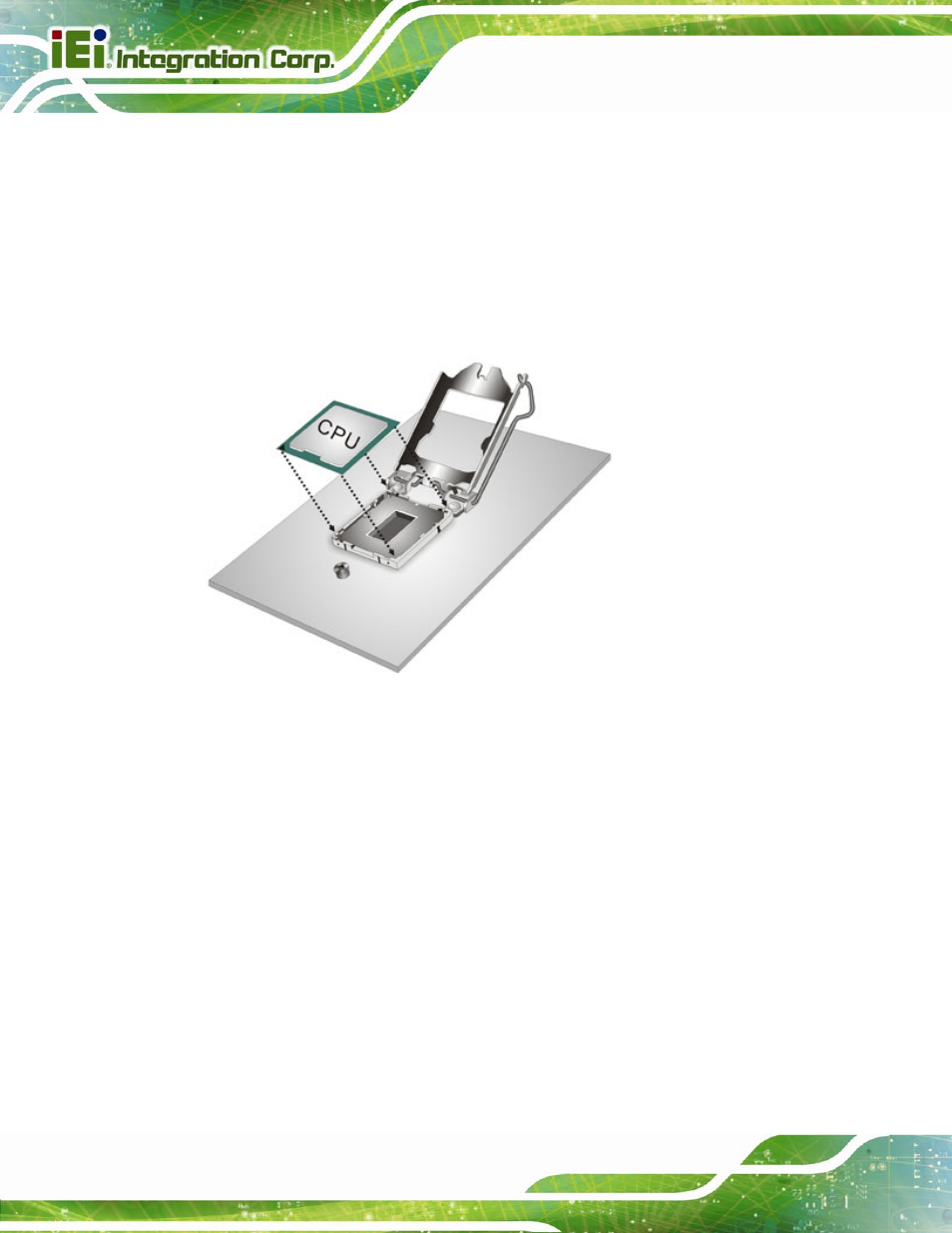

Figure 4-3: Insert the Socket LGA1150 CPU

Step 8:

Close the CPU socket. Close the load plate and pull the load lever back a little

to have the load plate be able to secure to the knob. Engage the load lever by

pushing it back to its original position (Figure 4-4). There will be some

resistance, but will not require extreme pressure.
