IMB-Q870-i2 microATX Motherboard

Page 21

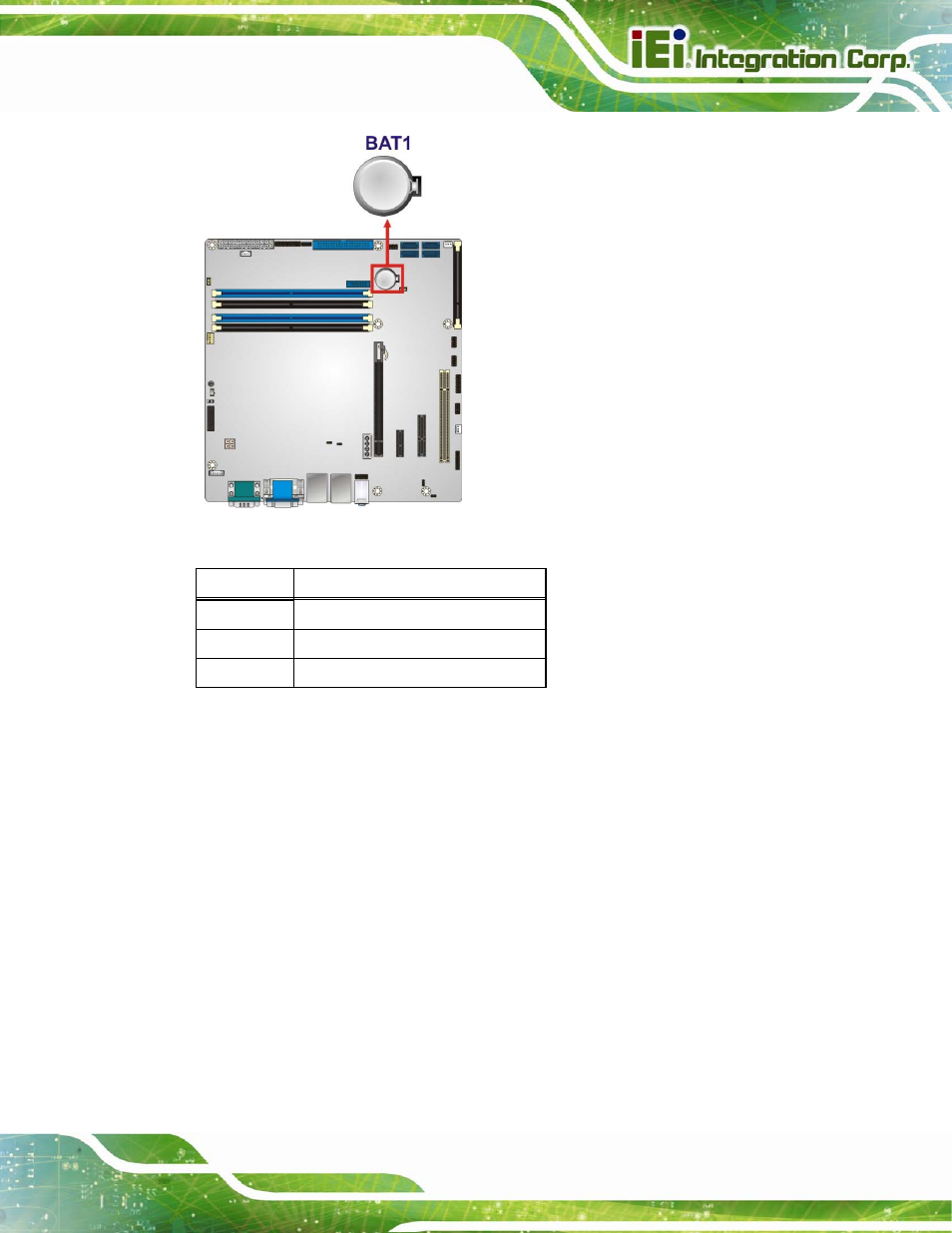

Figure 3-3: Battery Connector Location

Pin Description

1 NC

2 BAT+

3 BAT-(GND)

Table 3-4: Battery Connector Pinouts

3.2.3 Chassis Intrusion Connector

CN Label:

CHASSIS1

CN Type:

2-pin header

CN Location:

See

8

Figure 3-4

CN Pinouts:

See

8

Table 3-5

The chassis intrusion connector is for a chassis intrusion detection sensor or switch that

detects if a chassis component is removed or replaced.
