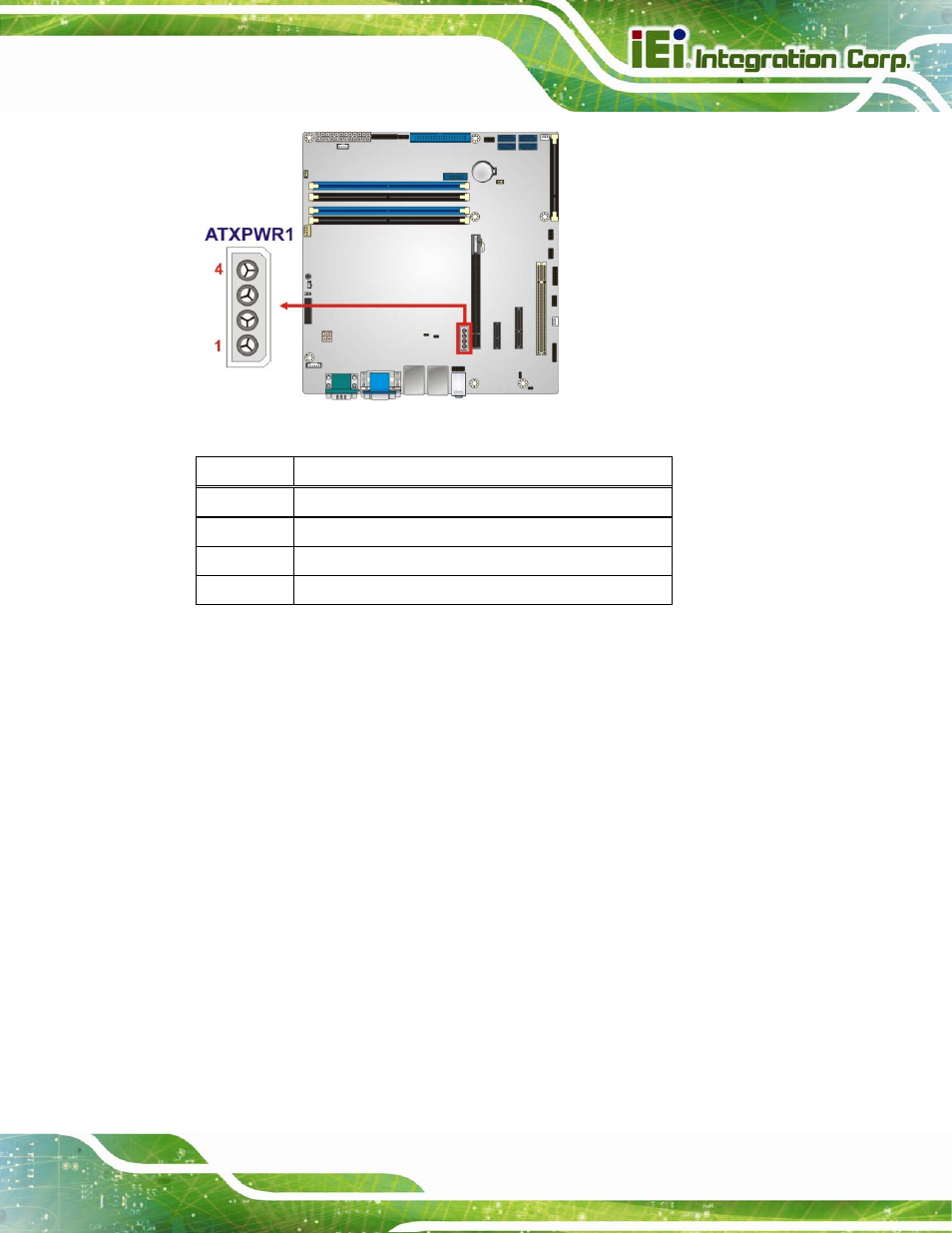

Figure 3-17: PCIe Power Location
Pin Description
1 VCC +5V
2 GND
3 GND
4 VCC +12V
Table 3-17: PCIe Power Pinouts
3.2.17 Power Button
CN Label: PWR_SW1
CN Type: Push button
CN Location: See Figure 3-18
The on-board power button controls system power.
