IMB-Q870-i2 microATX Motherboard
Page 42
The SPI flash connector is used to flash the EC ROM.

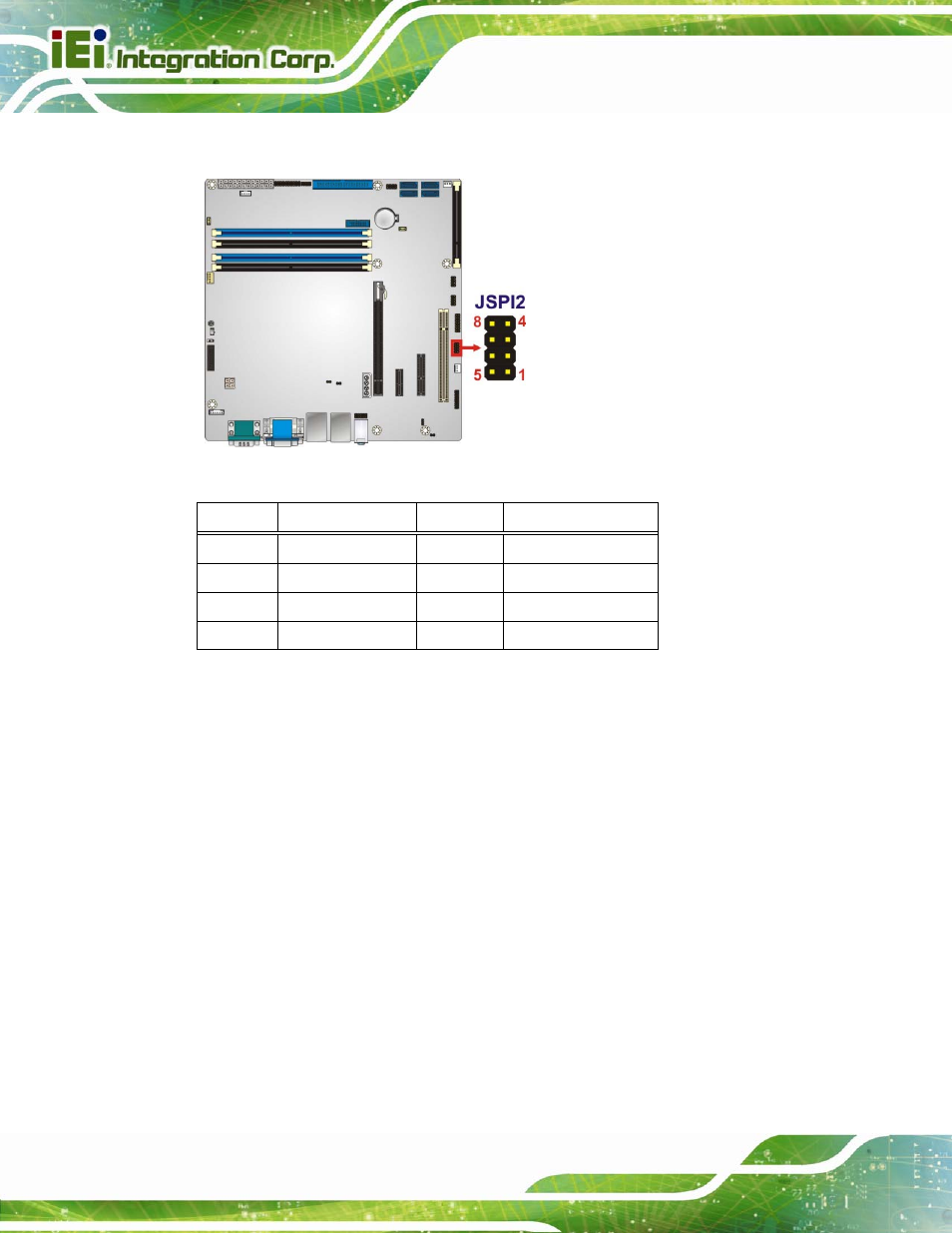

Figure 3-24: SPI EC Flash Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3V 2 SPI_CS#
3 SPI_SO 4 NC
5 GND 6 SPI_CLK
7 SPI_SI 8 NC
Table 3-24: SPI EC Flash Connector Pinouts
3.2.24 TPM Connector
CN Label: TPM1
CN Type: 20-pin header
CN Location: See Figure 3-25
CN Pinouts: See Table 3-25
The TPM connector connects to a TPM module.
