IMB-Q870-i2 microATX Motherboard
Page 31
WARNING:
The iRIS module slot is designed to install the IEI iRIS-2400 IPMI 2.0
module only. DO NOT install other modules into the iRIS module slot.
Doing so may cause damage to the IMB-Q870-i2.

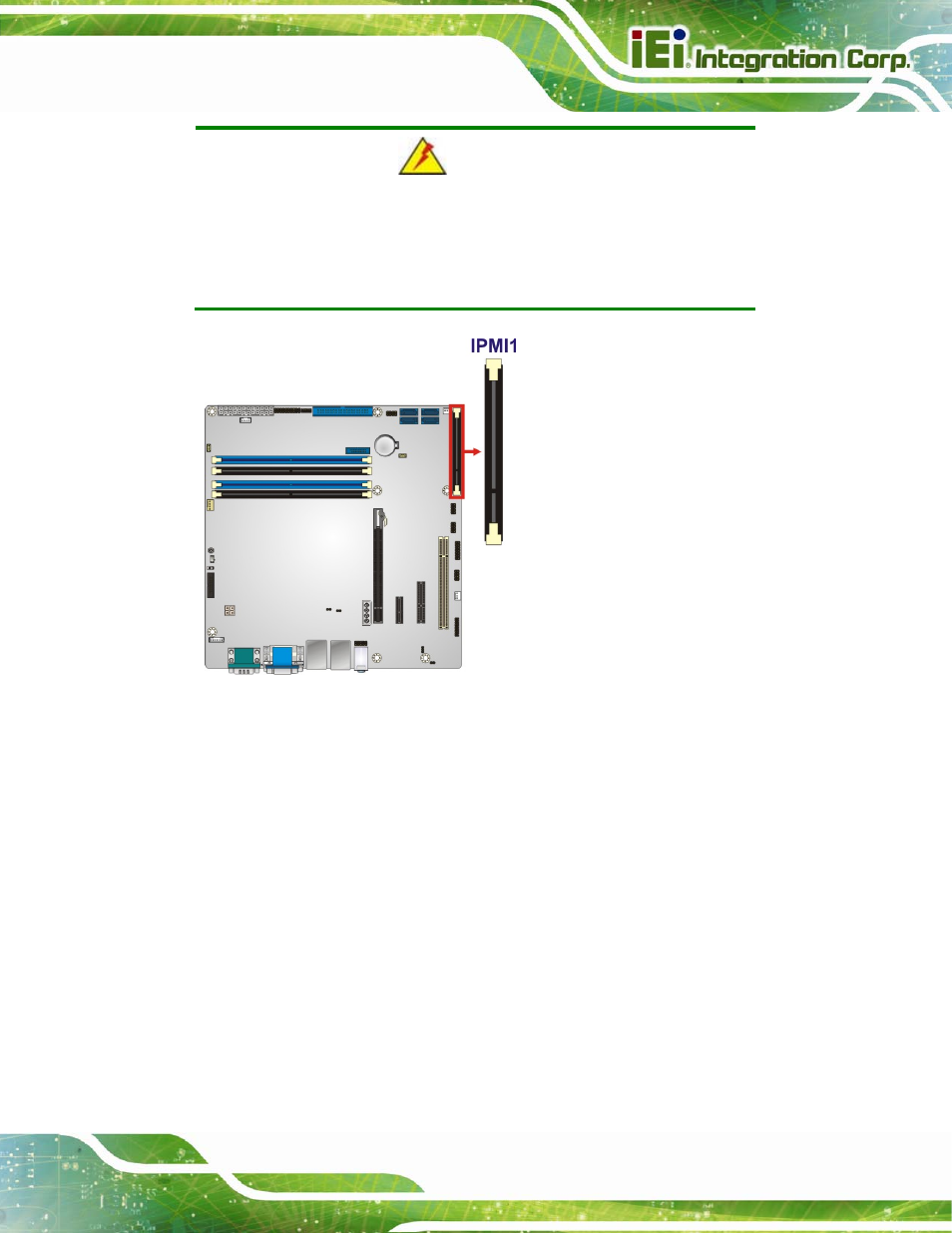

Figure 3-13: iRIS Module Slot Location
3.2.13 Keyboard and Mouse Connector
CN Label: KB_MS1
CN Type: 6-pin wafer
CN Location: See Figure 3-14
CN Pinouts: See Table 3-14
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a
PS/2 keyboard and mouse.
