IMB-Q870-i2 microATX Motherboard
Page 62
4.2.4 iRIS-2400 Module Installation
WARNING:
The iRIS module slot is designed to install the IEI iRIS-2400 IPMI 2.0
module only. DO NOT install other modules into the iRIS module slot.
Doing so may cause damage to the IMB-Q870-i2.
To install the iRIS-2400 module, please follow the steps below and refer to Figure 4-8.

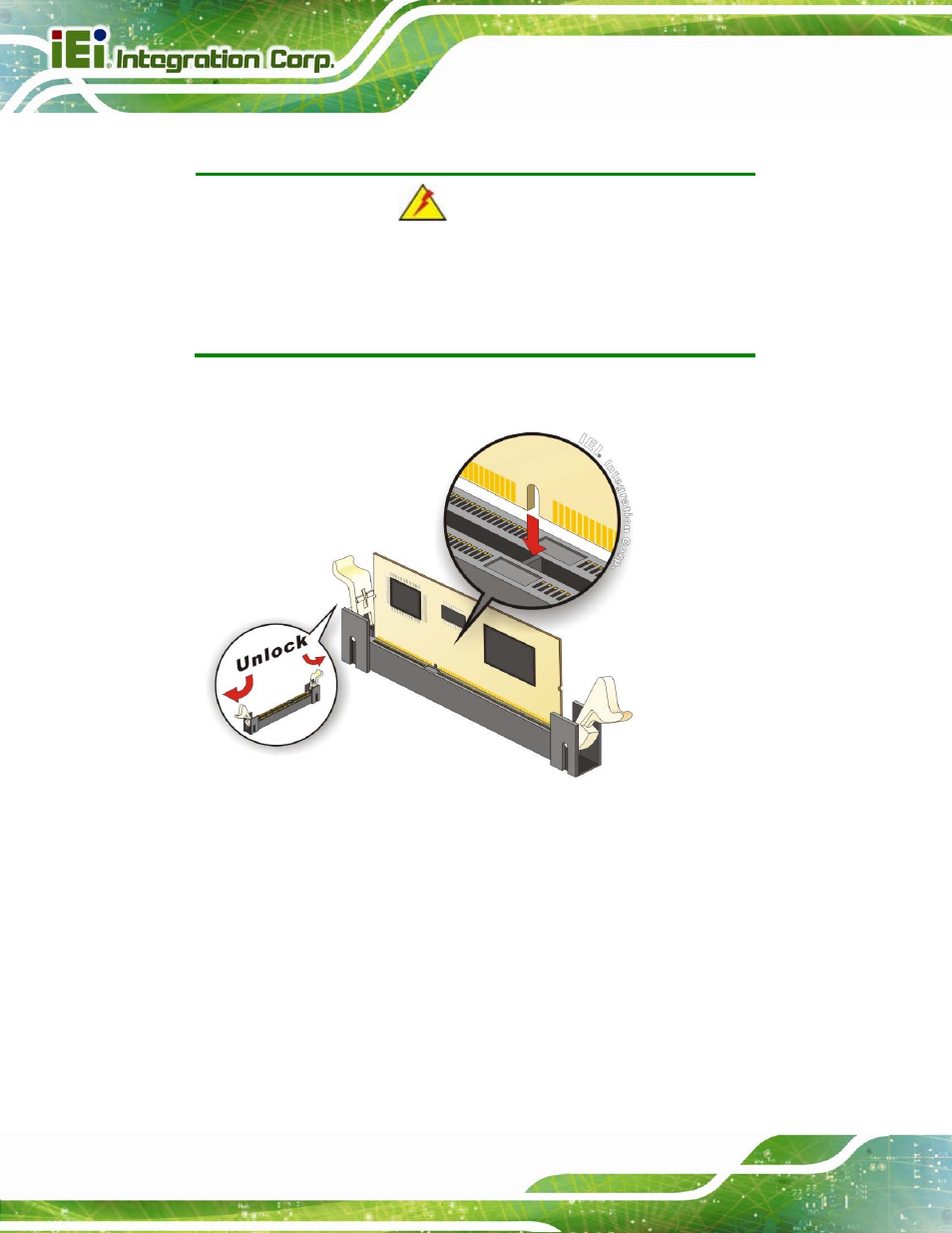

Figure 4-8: iRIS-2400 Module Installation
Step 1: Locate the iRIS module slot. See Figure 3-13.
Step 2: Open the socket handles. Open the two handles outwards as far as they can.
See Figure 4-8.
Step 3: Align the iRIS-2400 module with the socket. Align the iRIS-2400 module so
the notch on the module lines up with the notch on the socket. See Figure 4-8.
Step 4: Insert the iRIS-2400 module. Once aligned, press down until the iRIS-2400
module is properly seated. Clip the two handles into place. See Figure 4-8.
