IEI Integration IMB-Q870-i2 - Manual (Page 68)

IMB-Q870-i2 microATX Motherboard
Page 52
PIN DESCRIPTION PIN DESCRIPTION
C5 GND 14 +5V
C6 NC 15 Hot Plug Detect
1 DVI_DATA2# 16 HPDET
2 DVI_DATA2 17 DVI_DATA0#
3 GND 18 DVI_DATA0
4 N/C 19 GND
5 N/C 20 N/C
6 DDC CLK 21 N/C
7 DDC DATA 22 N/C
8 VS 23 DVI_CLK
9 DVI_DATA1# 24 DVI_CLK#

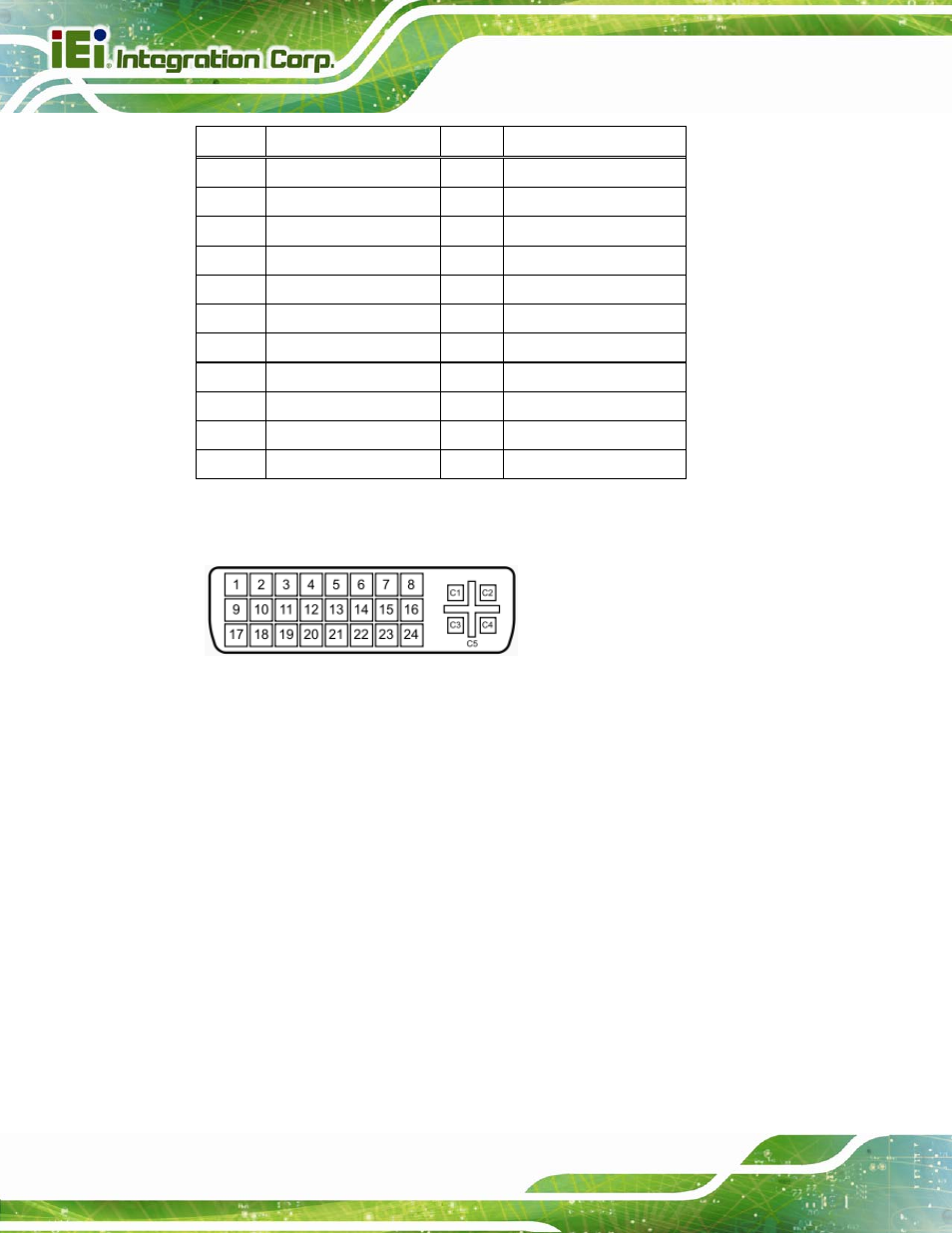

Table 3-37: DVI Connector Pinouts
Figure 3-32: DVI-I Connector
