IMB-Q870-i2 microATX Motherboard
Page 19
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the IMB-Q870-i2.
3.2.1 ATX Power Connector
CN Label: ATX1
CN Type: 24-pin ATX
CN Location: See Figure 3-2
CN Pinouts: See Table 3-3
The ATX power connector connects to an ATX power supply.

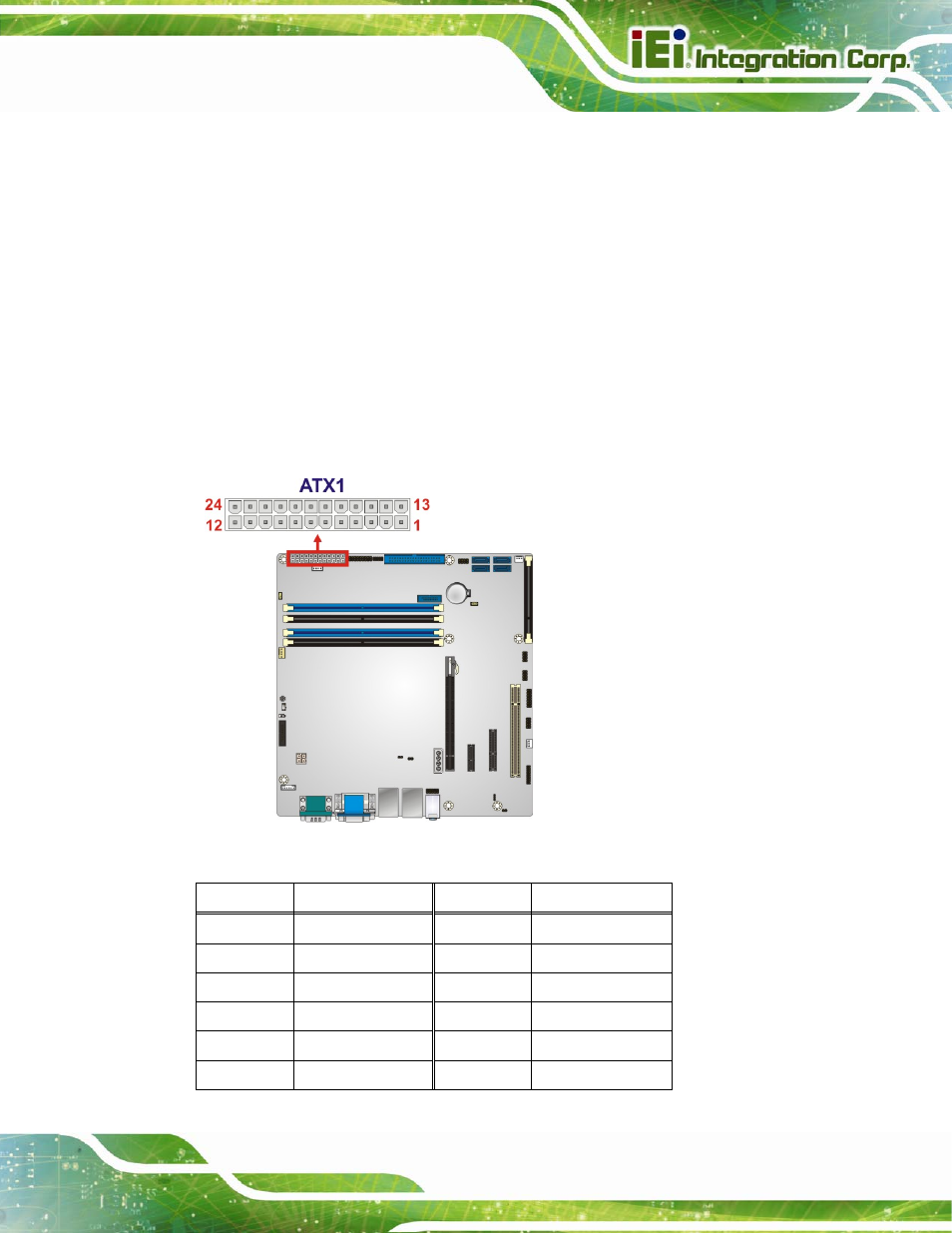

Figure 3-2: ATX Power Connector Location
Pin Description Pin Description
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
