IMB-Q870-i2 microATX Motherboard
Page 43

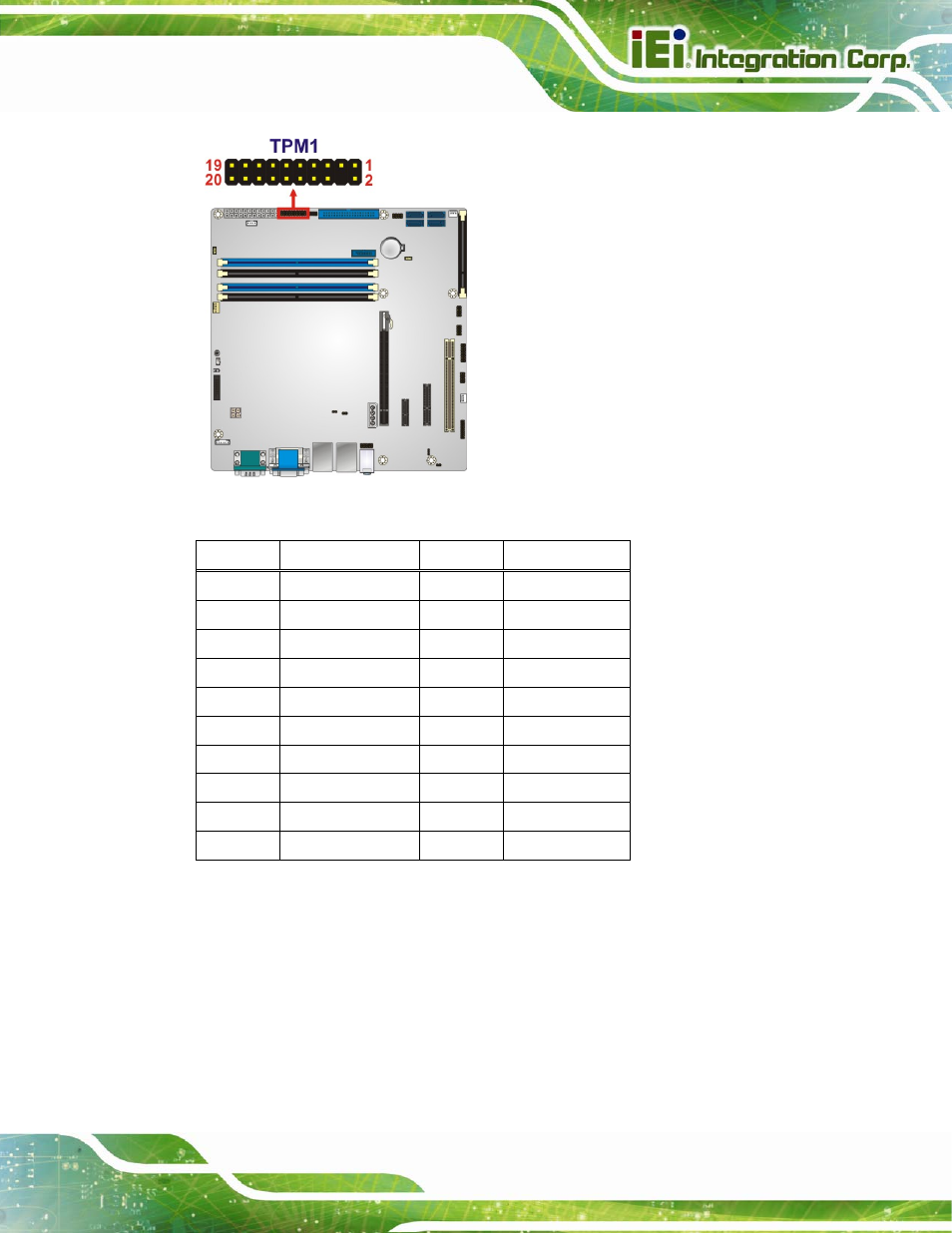

Figure 3-25: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCLK 2 GND
3 LFRAME# 4 KEY
5 LRERST# 6 +5V
7 LAD3 8 LAD2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-25: TPM Connector Pinouts
3.2.25 USB 2.0 Connectors
CN Label: USB1, USB2
CN Type: 8-pin header
CN Location: See Figure 3-26
