IMB-Q870-i2 microATX Motherboard
Page 23

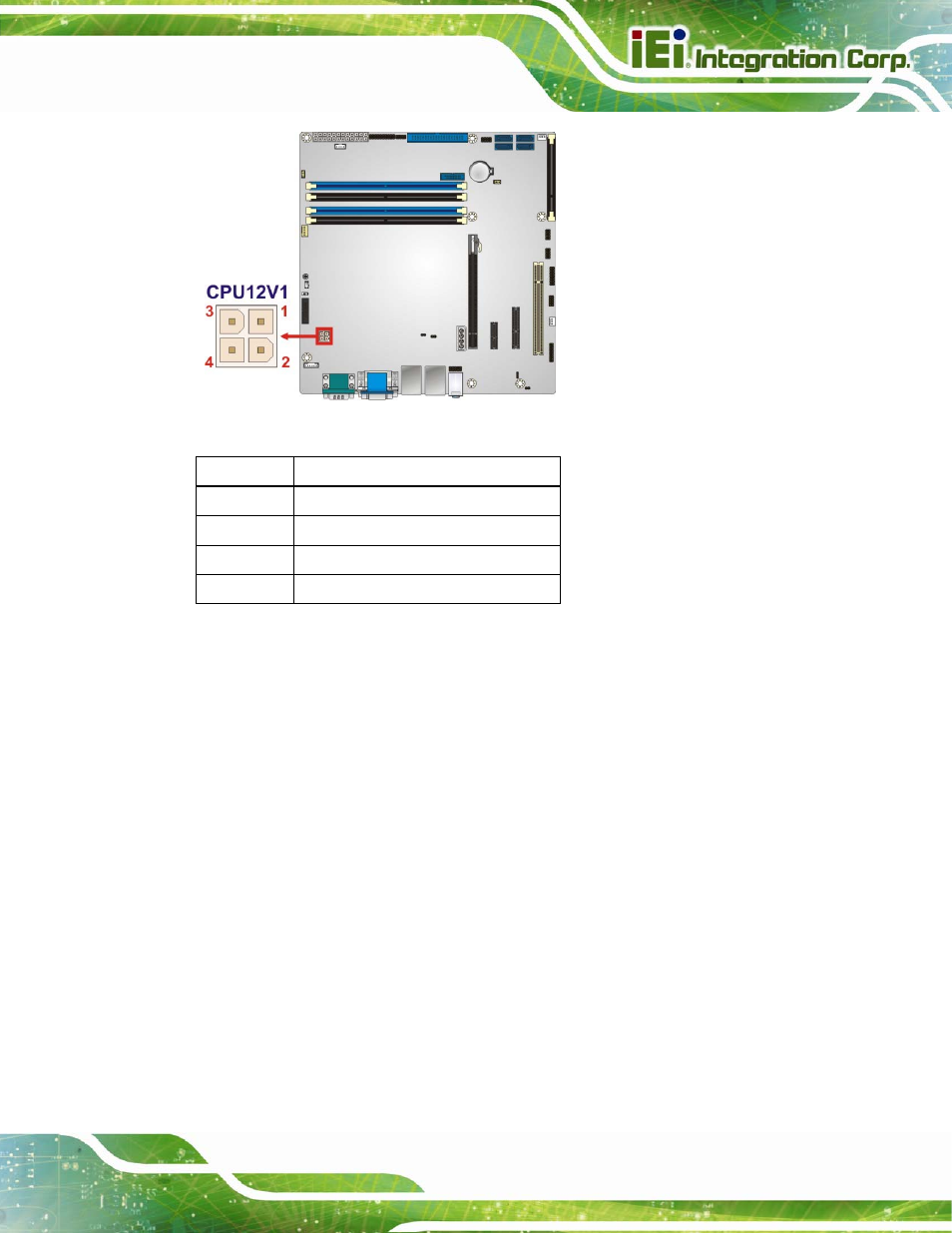

Figure 3-5: CPU Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 3-6: CPU Power Connector Pinouts
3.2.5 DisplayPort Connector
CN Label: DP1
CN Type: 19-pin box header
CN Location: See Figure 3-6
CN Pinouts: See Table 3-7
The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics
interfaces with up to 3840x2160 resolutions.
