IMB-Q870-i2 microATX Motherboard

Page 25

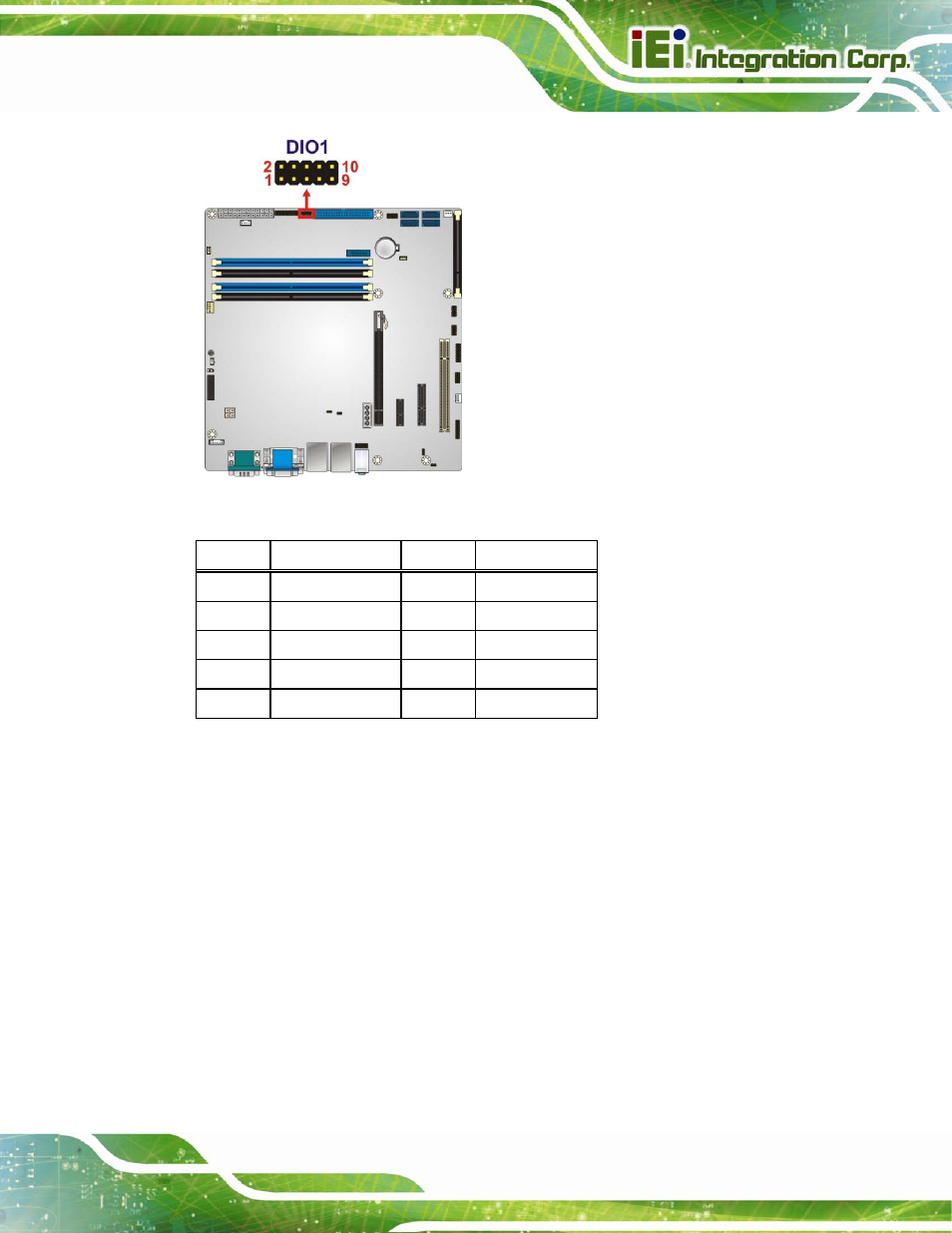

Figure 3-7: Digital I/O Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

VCC

3

Output 3

4

Output 2

5

Output 1

6

Output 0

7

Input 3

8

Input 2

9

Input 1

10

Input 0

Table 3-8: Digital I/O Connector Pinouts

3.2.7 EC Debug Connector

CN Label:

CN3

CN Type:

18-pin header

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-9

The EC debug connector is used for EC debug.
