IMB-Q870-i2 microATX Motherboard
Page 45

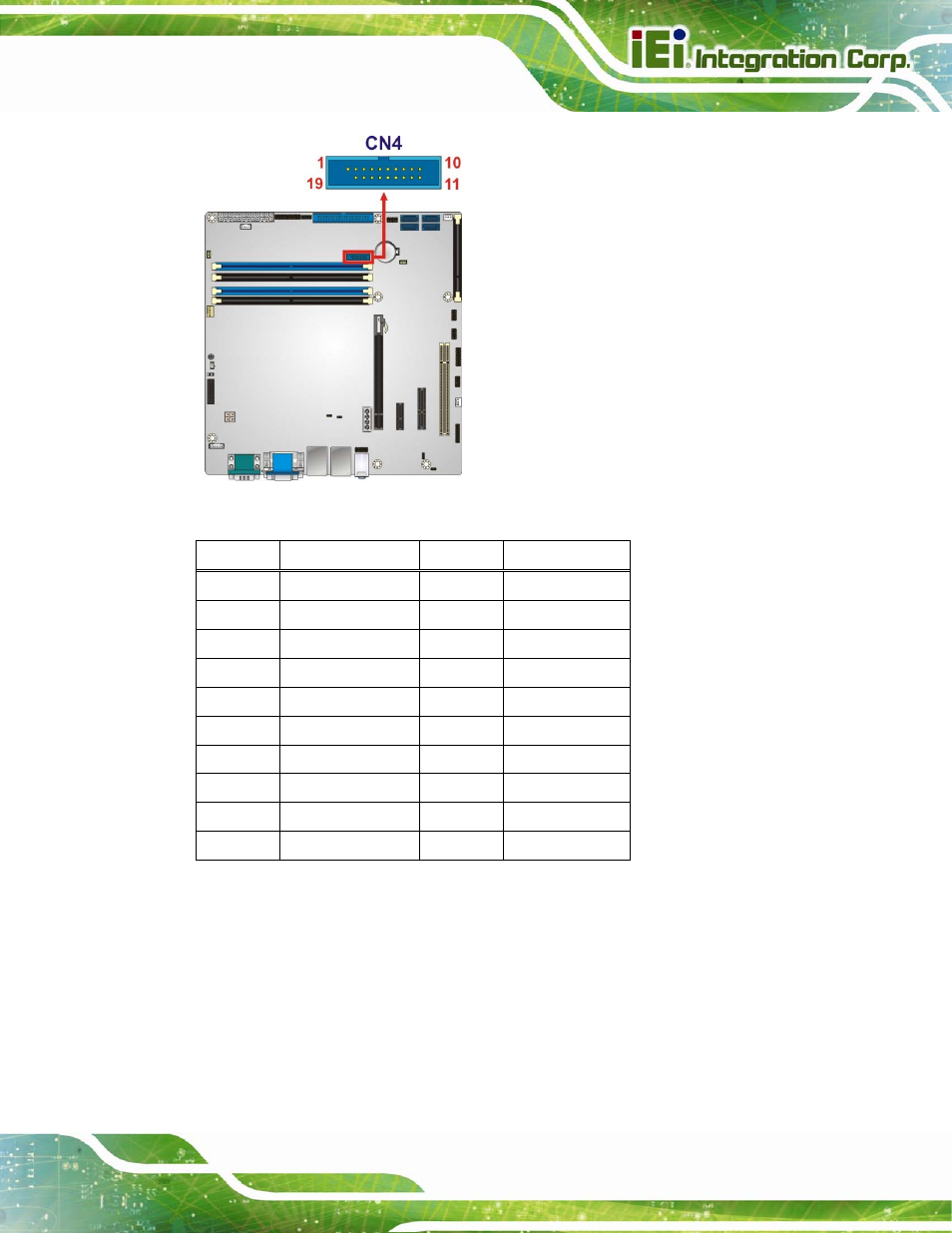

Figure 3-27: USB 3.0 Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 11 USB_DATA+
2 USB3_RX- 12 USB_DATA-
3 USB3_RX+ 13 GND
4 GND 14 USB3_TX+
5 USB3_TX- 15 USB3_TX-
6 USB3_TX+ 16 GND
7 GND 17 USB3_RX+
8 USB_DATA- 18 USB3_RX-
9 USB_DATA+ 19 VCC
10 NC
Table 3-27: USB 3.0 Connector Pinouts
3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
