IMB-Q870-i2 microATX Motherboard

Page 57

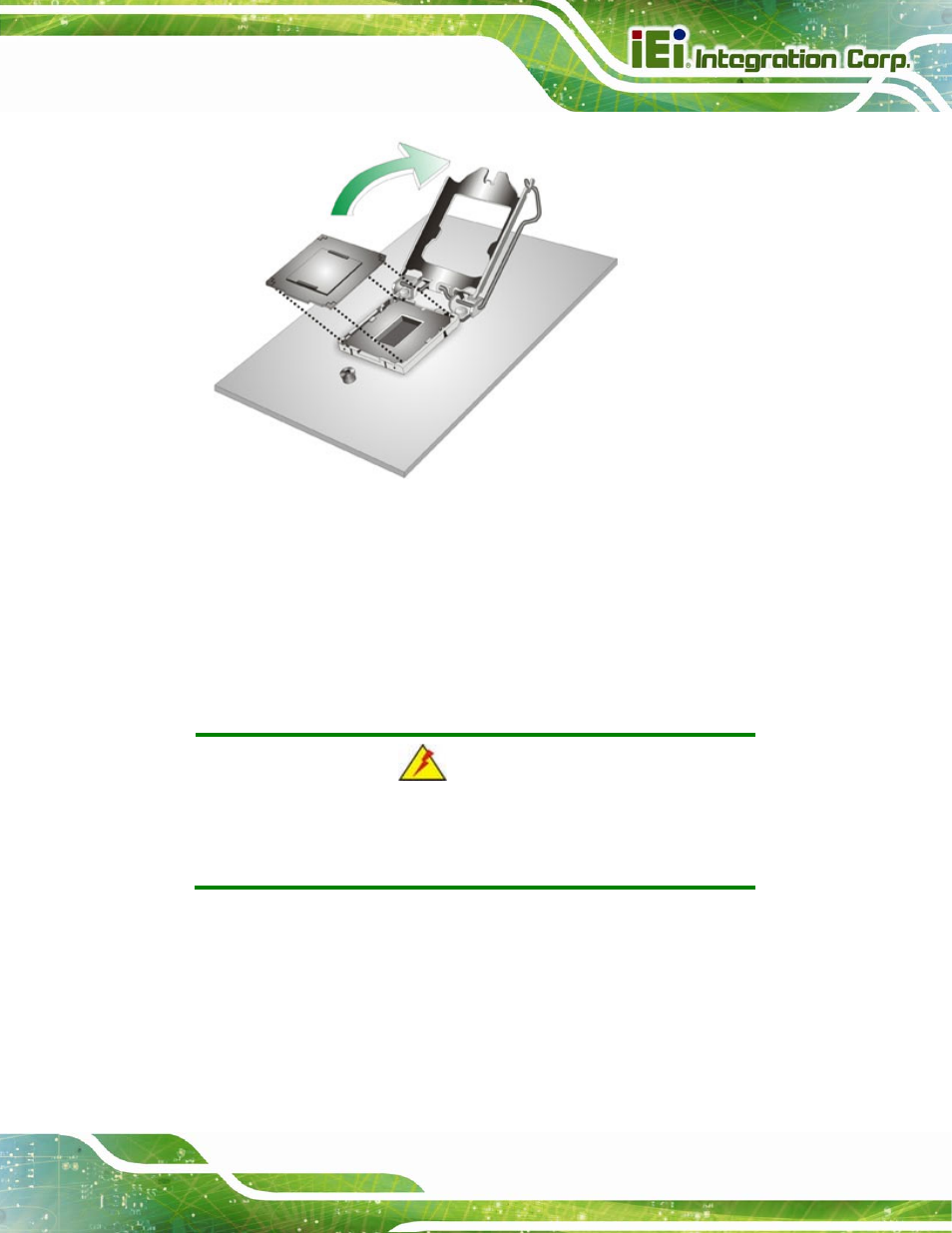

Figure 4-2: Remove Protective Cover

Step 3:

Inspect the CPU socket. Make sure there are no bent pins and make sure the

socket contacts are free of foreign material. If any debris is found, remove it with

compressed air.

Step 4:

Orientate the CPU properly. The contact array should be facing the CPU

socket.

WARNING:

DO NOT touch the pins at the bottom of the CPU. When handling the

CPU, only hold it on the sides.

Step 5:

Correctly position the CPU. Match the Pin 1 mark with the cut edge on the

CPU socket.
