Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the IMB-Q870-i2. Carefully route the cable and avoid heat generating chips
and fan blades.
4.2.3 DIMM Installation
To install a DIMM, please follow the steps below and refer to Figure 4-7.

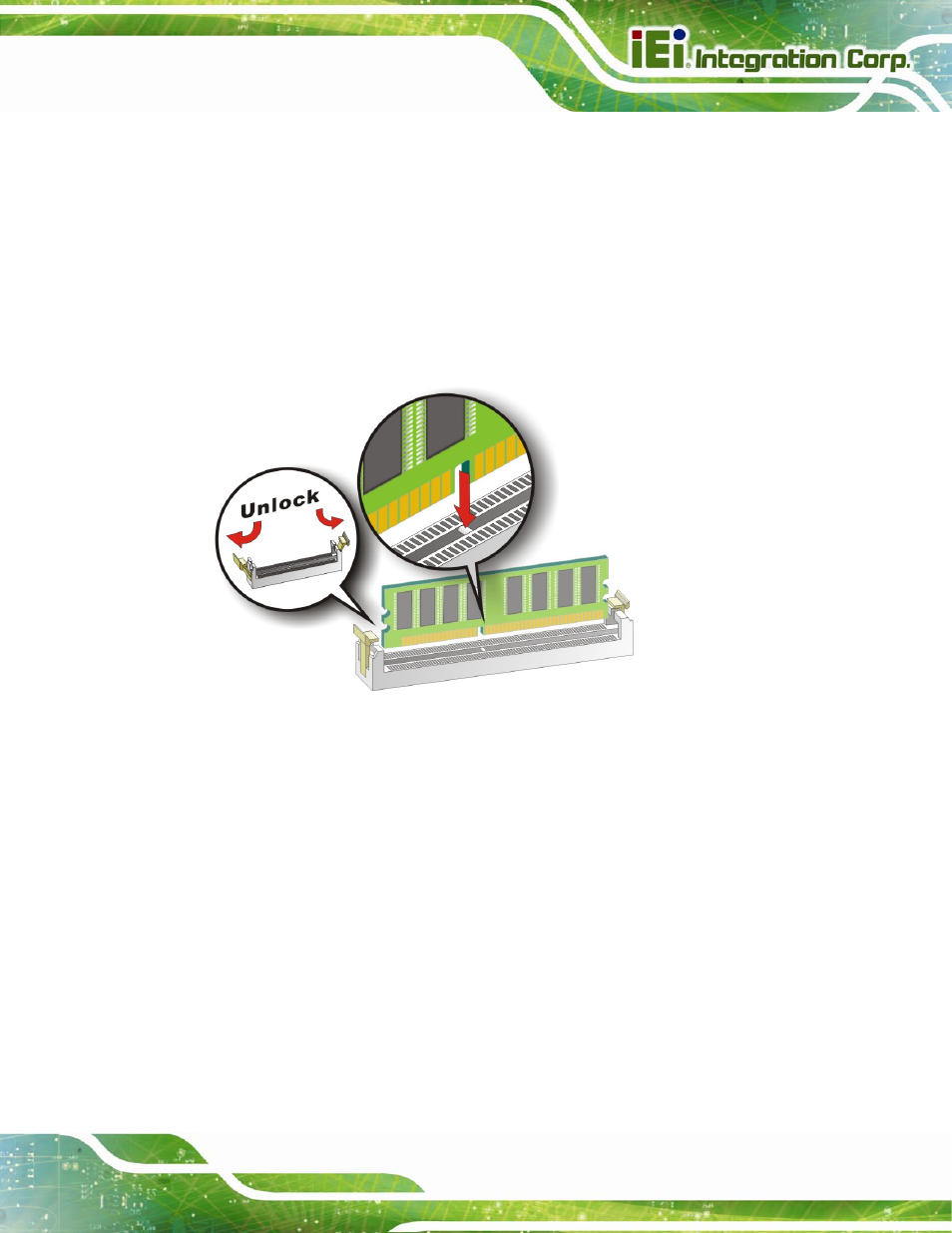

Figure 4-7: DIMM Installation
Step 1: Open the DIMM socket handles. Open the two handles outwards as far as
they can. See Figure 4-7.
Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory
lines up with the notch on the memory socket. See Figure 4-7.
Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.
Clip the two handles into place. See Figure 4-7.
Step 4: Removing a DIMM. To remove a DIMM, push both handles outward. The
memory module is ejected by a mechanism in the socket. Step 0:
