4.3.2 Clear CMOS Button

To reset the BIOS, remove the on-board battery and press the clear CMOS button for

three seconds or more. The clear CMOS button location is shown in Figure 4-10.

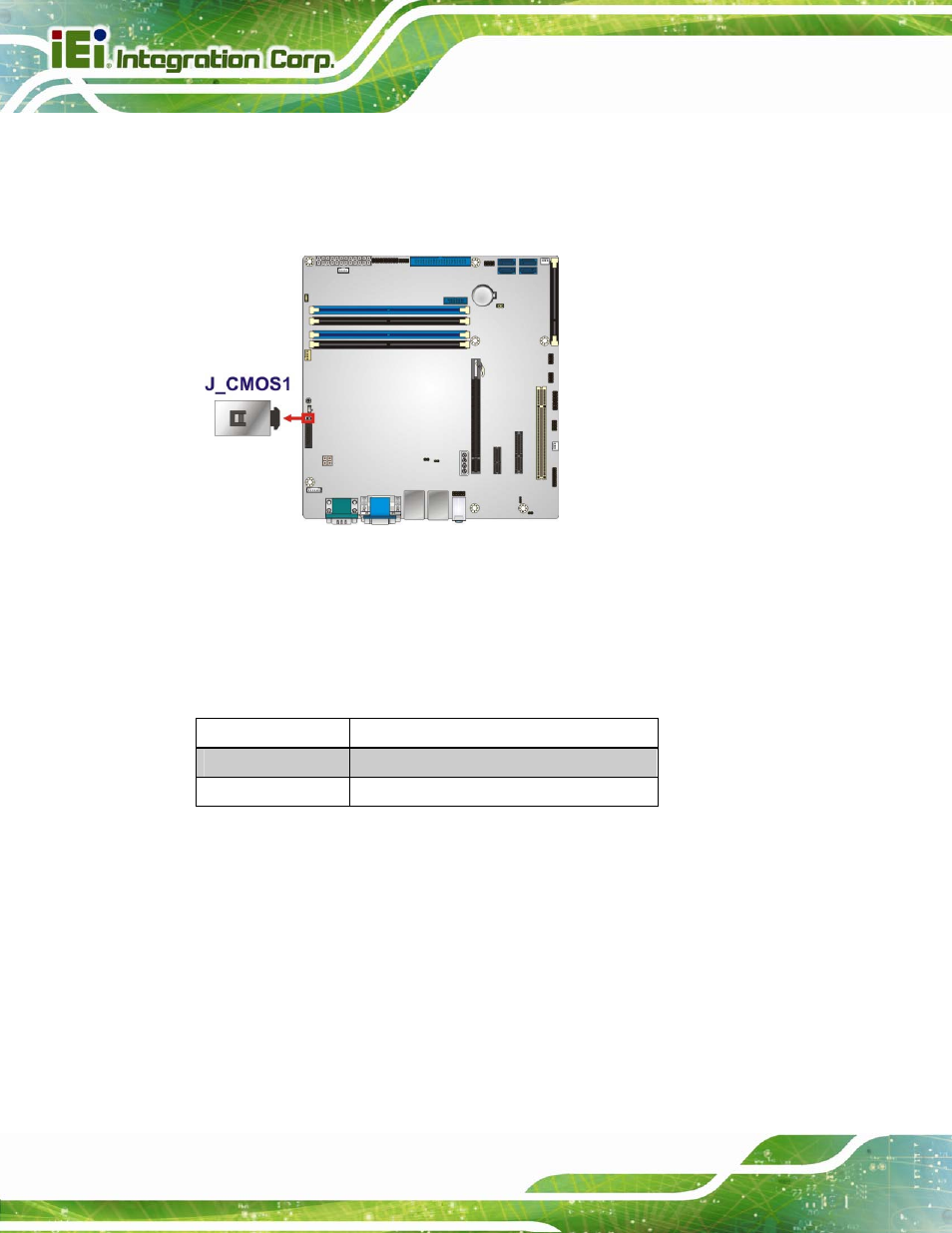

Figure 4-10: Clear CMOS Button Location

4.3.3 Flash Descriptor Security Override

The Flash Descriptor Security Override jumper specifies whether to override the flash

descriptor.

Setting Description

Short 1-2

No override (Default)

Short 2-3

Override

Table 4-1: Flash Descriptor Security Override Jumper Settings
