IMB-Q870-i2 microATX Motherboard

Page 67

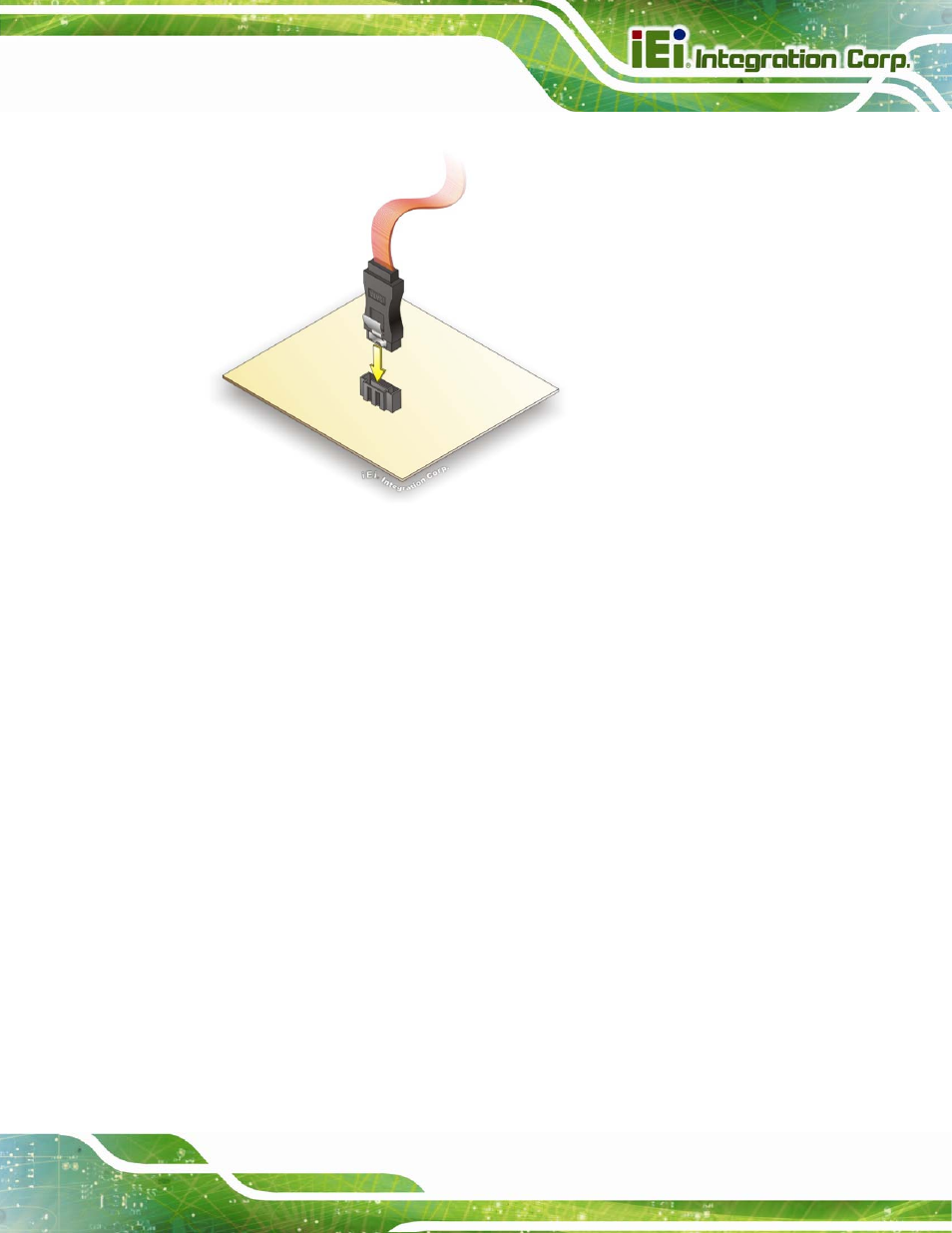

Figure 4-12: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-13.

Step 4:

Connect the SATA power cable (optional). Connect the SATA power

connector to the back of the SATA drive. See Figure 4-13.
