IMB-Q870-i2 microATX Motherboard
Page 30

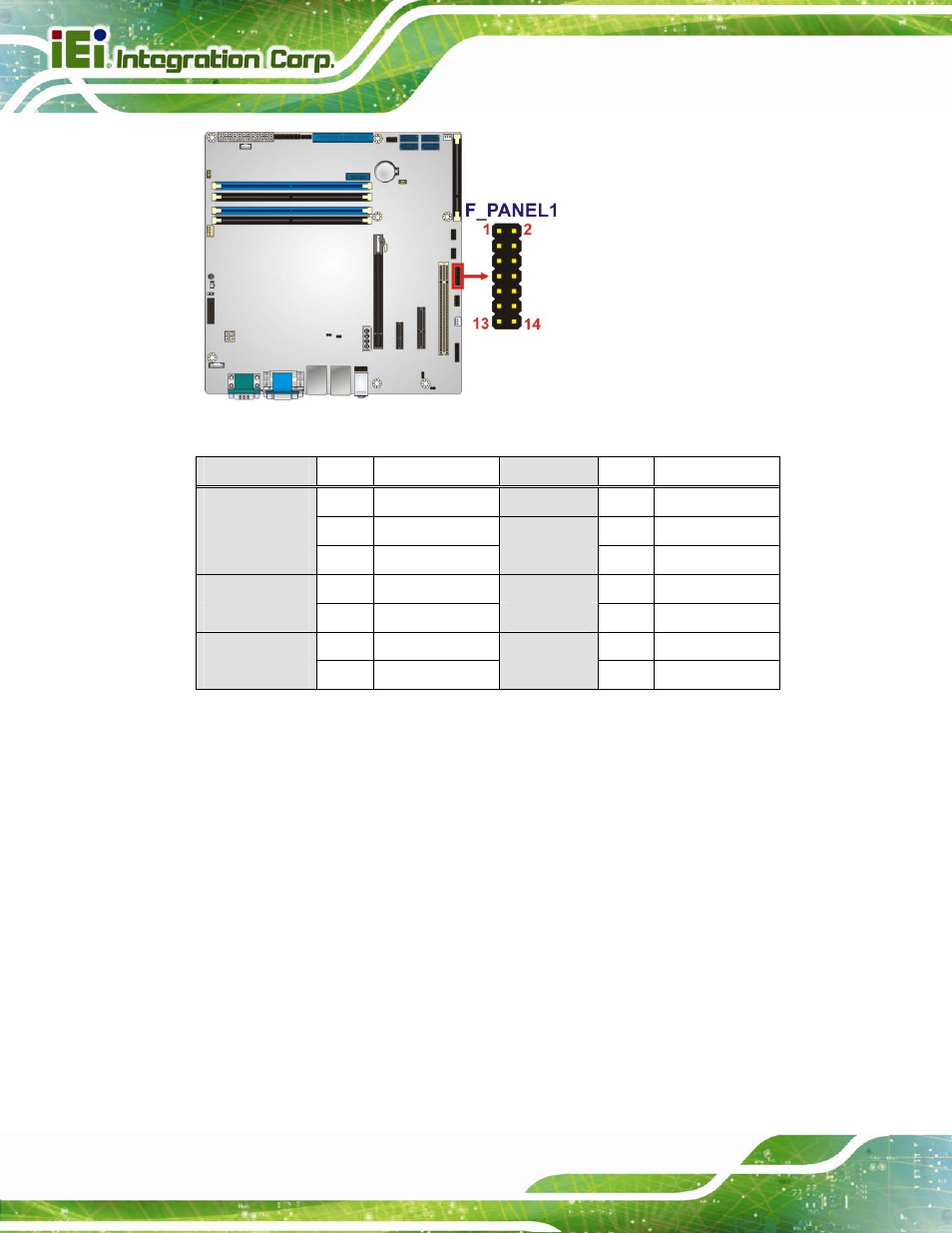

Figure 3-12: Front Panel Connector Location
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED 1 +5V Speaker 2 Beep Power
3 NC IPMI LED 4 IPMI ID_LED+
5 GND 6 IPMI ID_LED-
Power Button 7 PWRBT_SW# Speaker 8 PC Beep
9 GND 10 NC
HDD LED 11 +5V Reset 12 EXTRST-
13 SATA_LED# 14 GND
Table 3-13: Front Panel Connector Pinouts
3.2.12 iRIS Module Slot
CN Label: IPMI1
CN Type: 204-pin DDR3 SO-DIMM slot
CN Location: See
8
Figure 3-13
The iRIS module slot is used to install the IEI iRIS-2400 IPMI 2.0 module.
