IMB-Q870-i2 microATX Motherboard

Page 169

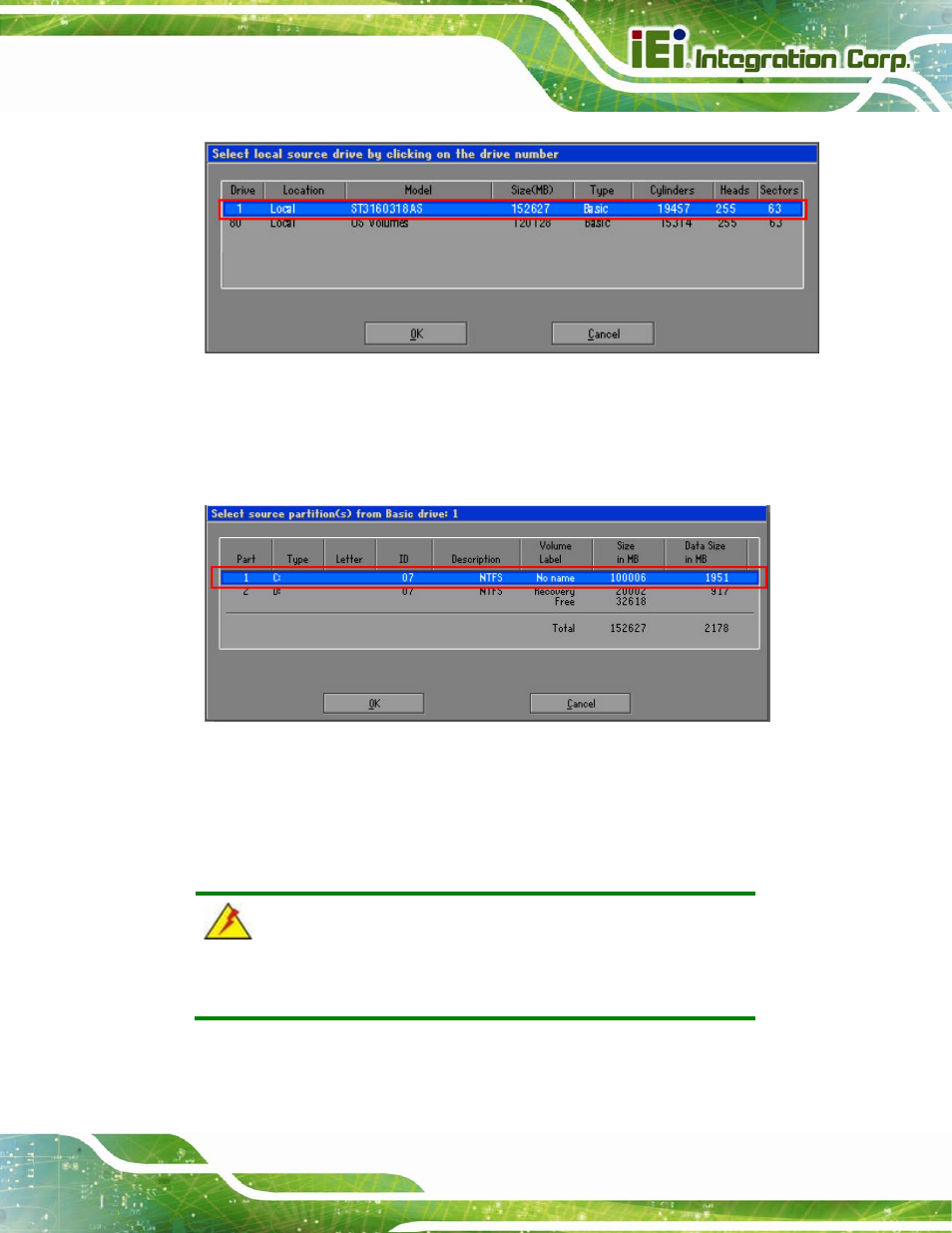

Figure C-14: Select a Local Source Drive

Step 6:

Select a source partition (Part 1) from basic drive as shown in Figure C-15.

Then click OK.

Figure C-15: Select a Source Partition from Basic Drive

Step 7:

Select 1.2: [Recovery] NTFS drive and enter a file name called

iei

(Figure C-16). Click Save. The factory default image will then be saved in the

selected recovery drive and named IEI.GHO.

WARNING:

The file name of the factory default image must be

iei.GHO
