IMB-Q870-i2 microATX Motherboard
Page 28

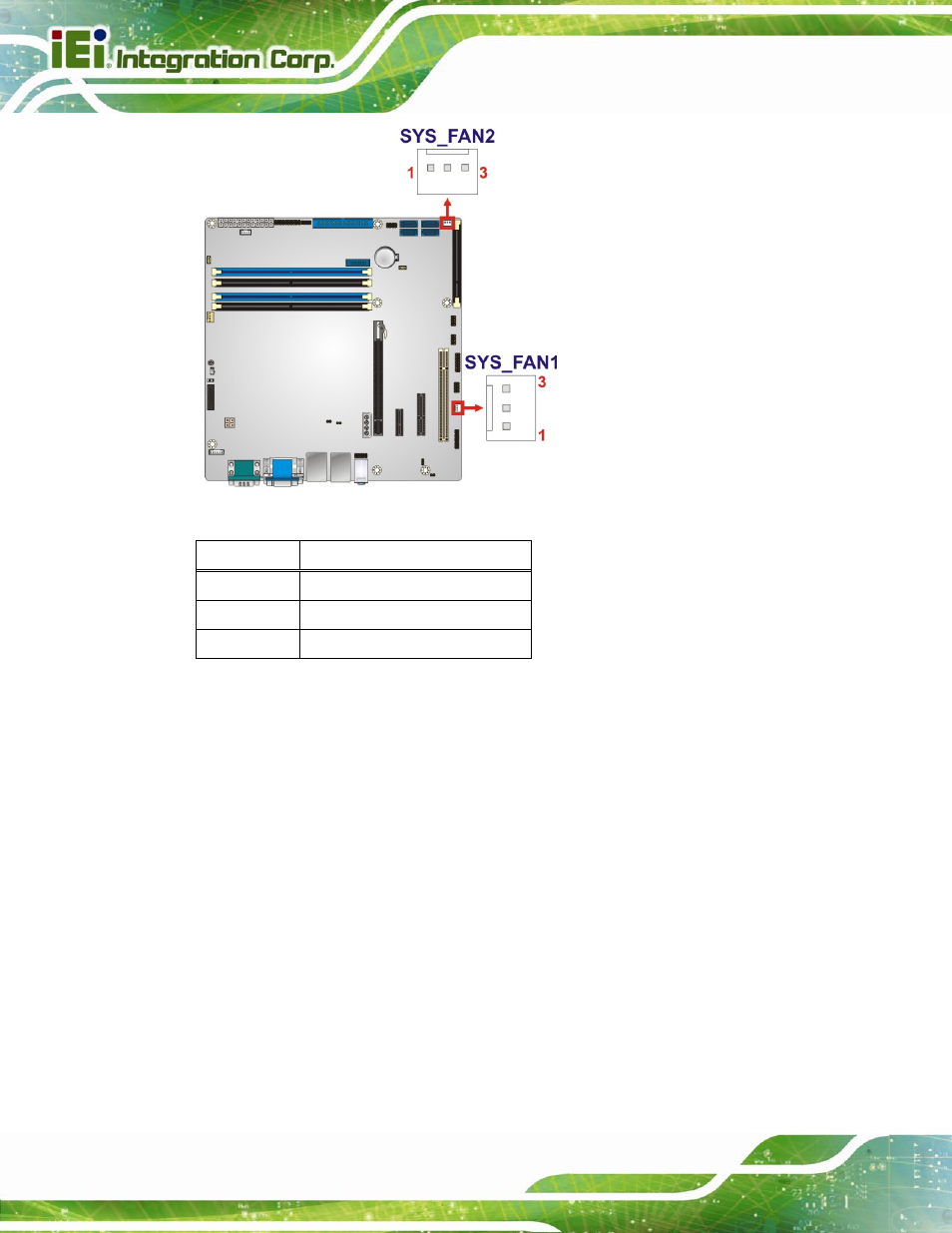

Figure 3-10: System Fan Connector Locations
PIN NO. DESCRIPTION
1 FANIO
2 +12 V (PWM)
3 GND
Table 3-11: System Fan Connector Pinouts
3.2.10 Front Panel Audio Connector
CN Label: FRONT-PANEL1
CN Type: 10-pin header
CN Location: See Figure 3-11
CN Pinouts: See Table 3-12
This connector connects to speakers, a microphone and an audio input.
