Recording Progress Bar
This indicator bar changes color to reflect the recording progress.
•
Black vertical line is at the location of Trigger position.
•
Black vertical line wiggles when Trigger Position is nearly reached.
•
Field to right of Trigger Position changes color to indicate post-trigger activity.
•
Upper half of progress indicator turns white when recording is complete.
Recording Status
The second segment from the left in the Status Bar indicates recording status.
During recording, this status flashes one of the following messages:
•
Trigger?
•
Triggered!
•
Uploading
After recording stops, the message changes to
•
Uploading data - x% done (where x equals the percent that has been uploaded.)
As uploading progresses, the percent increases to 100. You can abort this upload if you
wish by pressing the
clicking
in the Tool Bar.

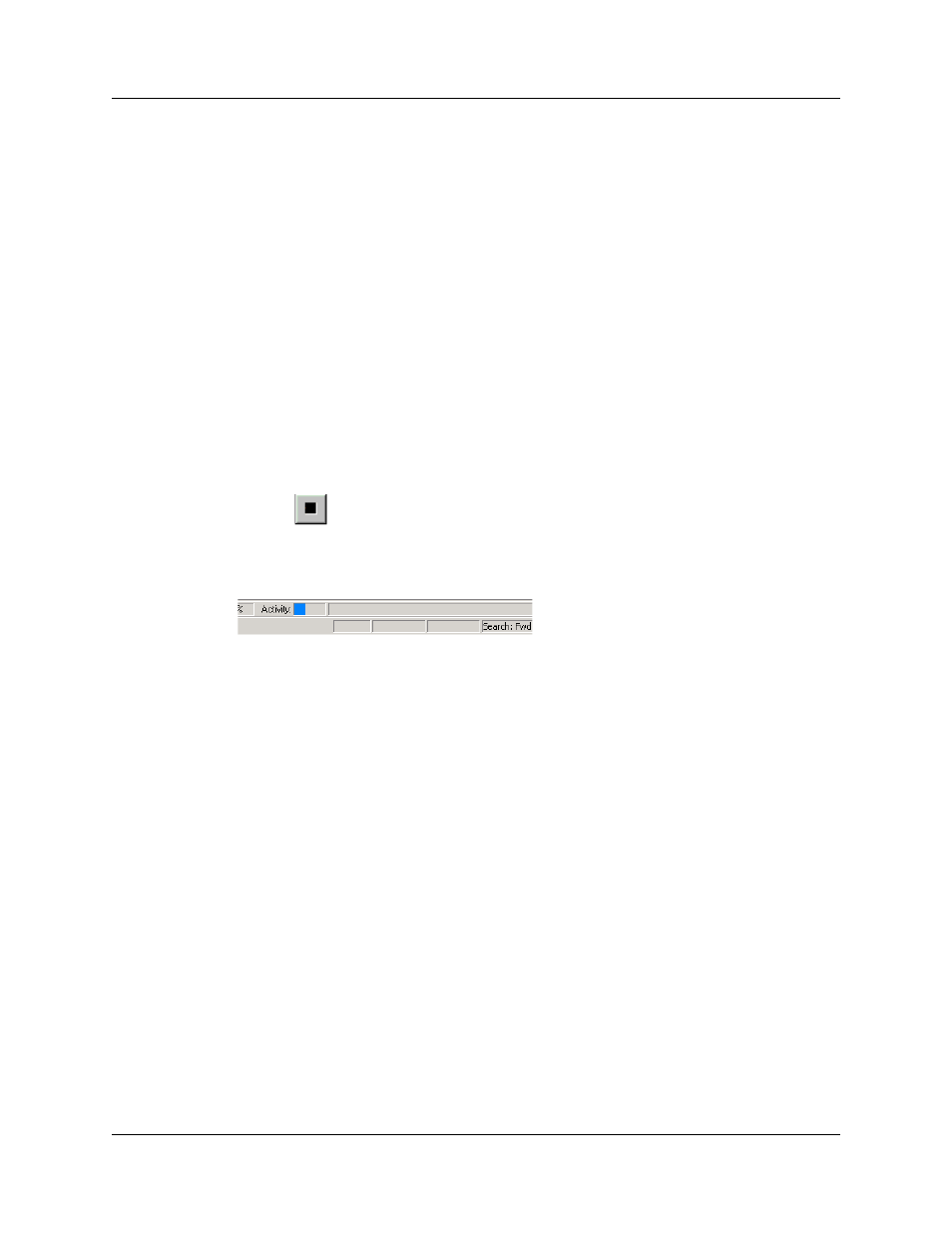

Recording Activity
The third segment displays recorded activity. Activity is indicated in blue:
Search Direction Indicator
The fourth segment in the status bar indicates search direction. The direction can be
changed by selecting Search Direction from the Search menu.
