SierraNet M168 User Manual 57
Trigger and Filter Settings in Easy Mode Teledyne LeCroy
can set the trigger position in the captured buffer as a percentage of the seg‐
ment size. Trigger point of 0% means the trigger point will be on the first packet
in the buffer. (See
“Trigger Position” on page 133 .)

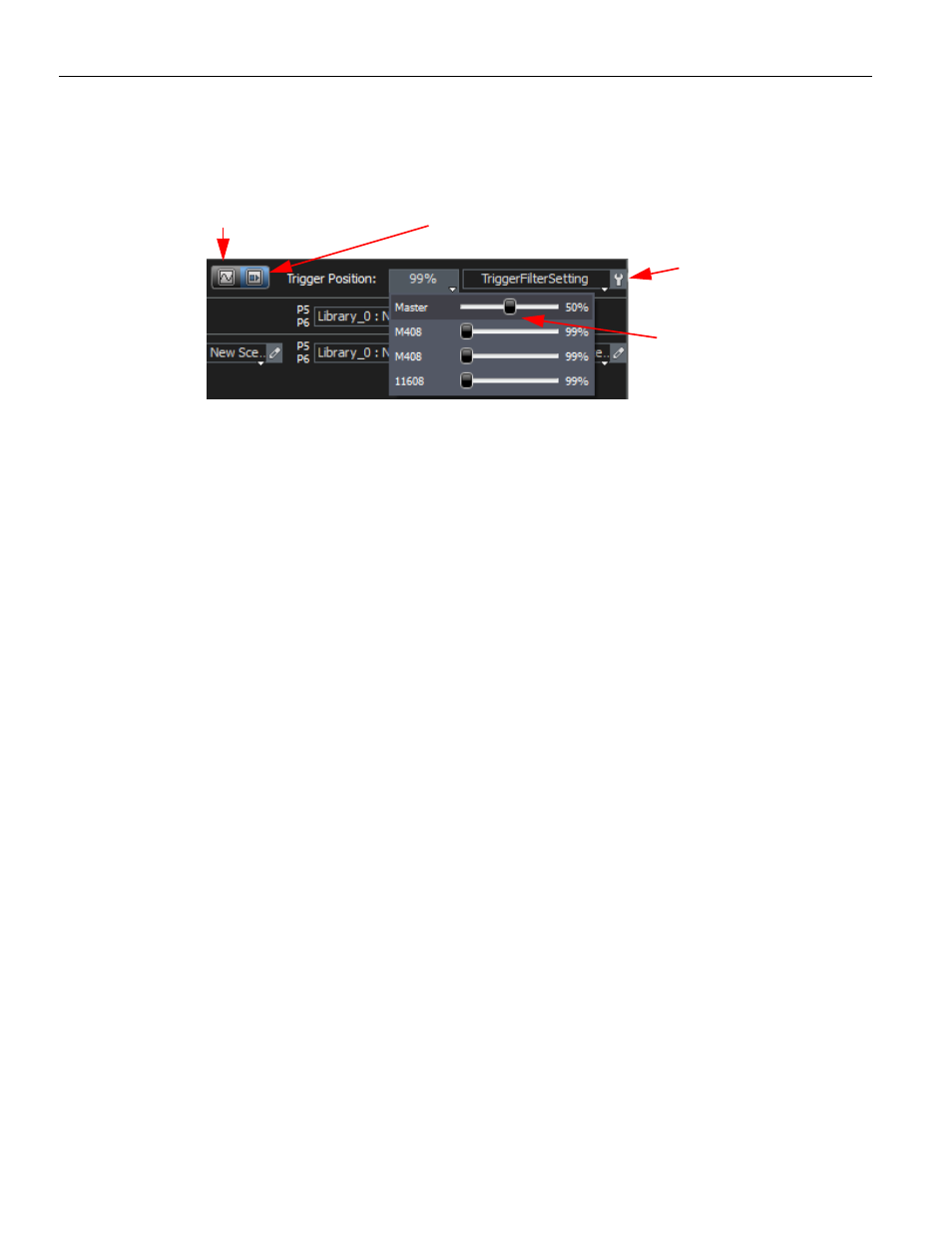

Figure 2.29: Trigger/Filter Settings Pane
2.6 Trigger and Filter Settings in Easy Mode
This mode allows you to operate the analyzer with minimum setup. In this mode, you can
perform only a Trigger and Data capture. Use Easy Mode to get a comprehensive
overview of your analyzer’s capabilities.
The Trigger and Filter settings dialog allows you to set the parameters for triggering on
selected triggers and filtering in (including) or filtering out (excluding) selected patterns.
The dialog box opens with default settings to capture everything on the bus. The analyzer
captures everything immediately without triggering on anything in particular.
2.6.1 Trigger Tab
You can drag and drop patterns from the Trigger Library pane into the Active Pane. You
can select the pattern and use the Add and Remove arrows to move patterns between
the Patterns Library and the Active pane (see
Figure 2.30 on page 58 ). See “Trigger Setup”
on page 130. You can copy a frame from the spreadsheet view and paste it in the Active
Pane for triggering.
Set Trigger Position
Snapshot Mode Click for Event Trigger
Trigger/Filter
Settings
