SierraNet M168 User Manual 165
Filtering Teledyne LeCroy

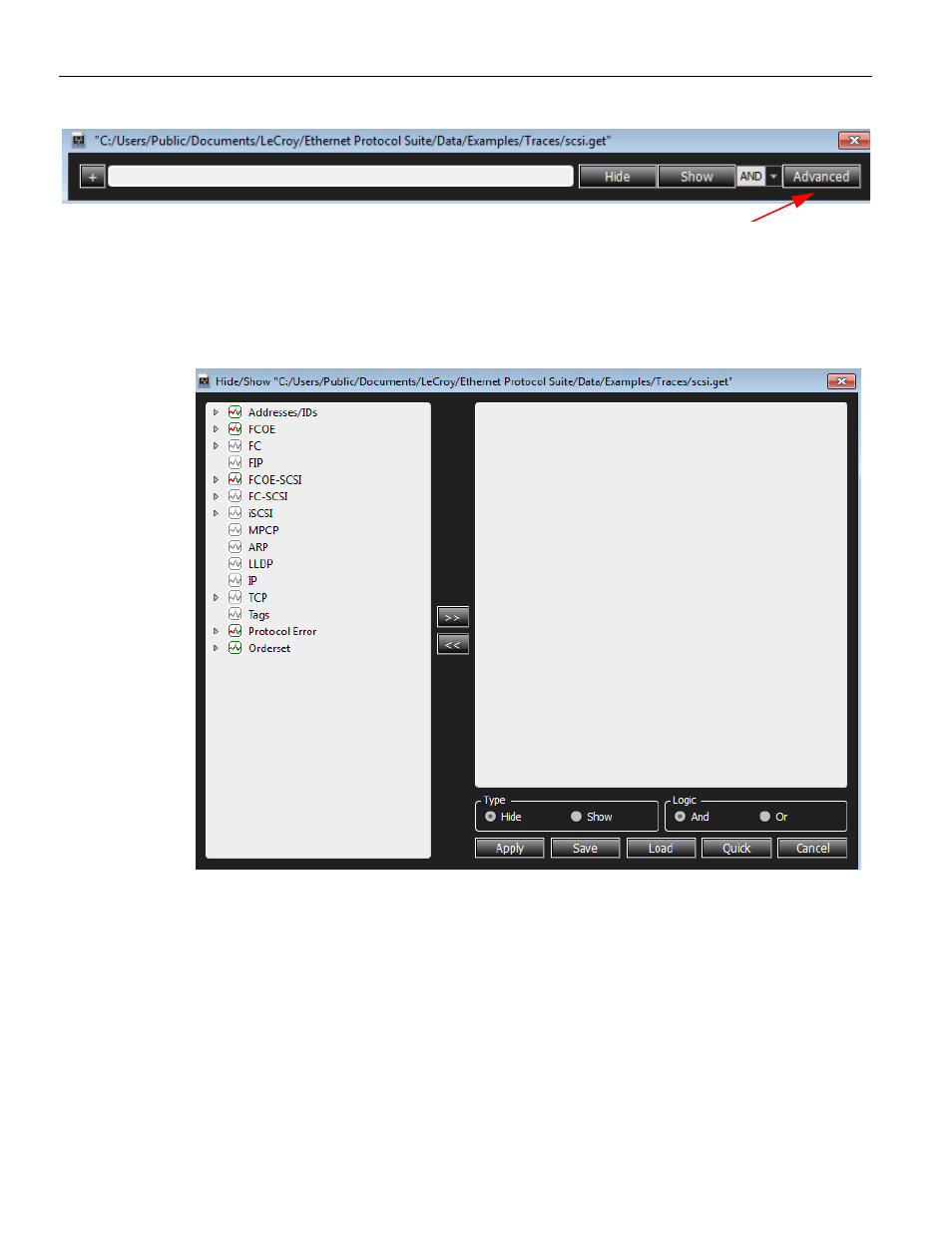

Figure 3.32: Quick Filter Dialog
Click the Advanced button on the Quick Filter dialog to display the Advanced Filter dialog
(see
Figure 3.33 on page 165 ).
Figure 3.33: Advanced Filter Dialog
You can select or deselect each of the items shown in the left pane for filtering. Items not
in the current trace are greyed out.
NOTE 1: If you select a group, that also selects all child items.
NOTE 2: Only packets captured at run time are available for selection for filtering.
Filter Type
You can choose to show or hide the Filter Type items by checking the Show or Hide option
button.
Filter Logic
