Teledyne LeCroy Trigger and Filter Settings in Easy Mode
110 SierraNet M168 User Manual
2.6.19 Protocol Errors
Double‐click Protocol Errors to open the dialog.

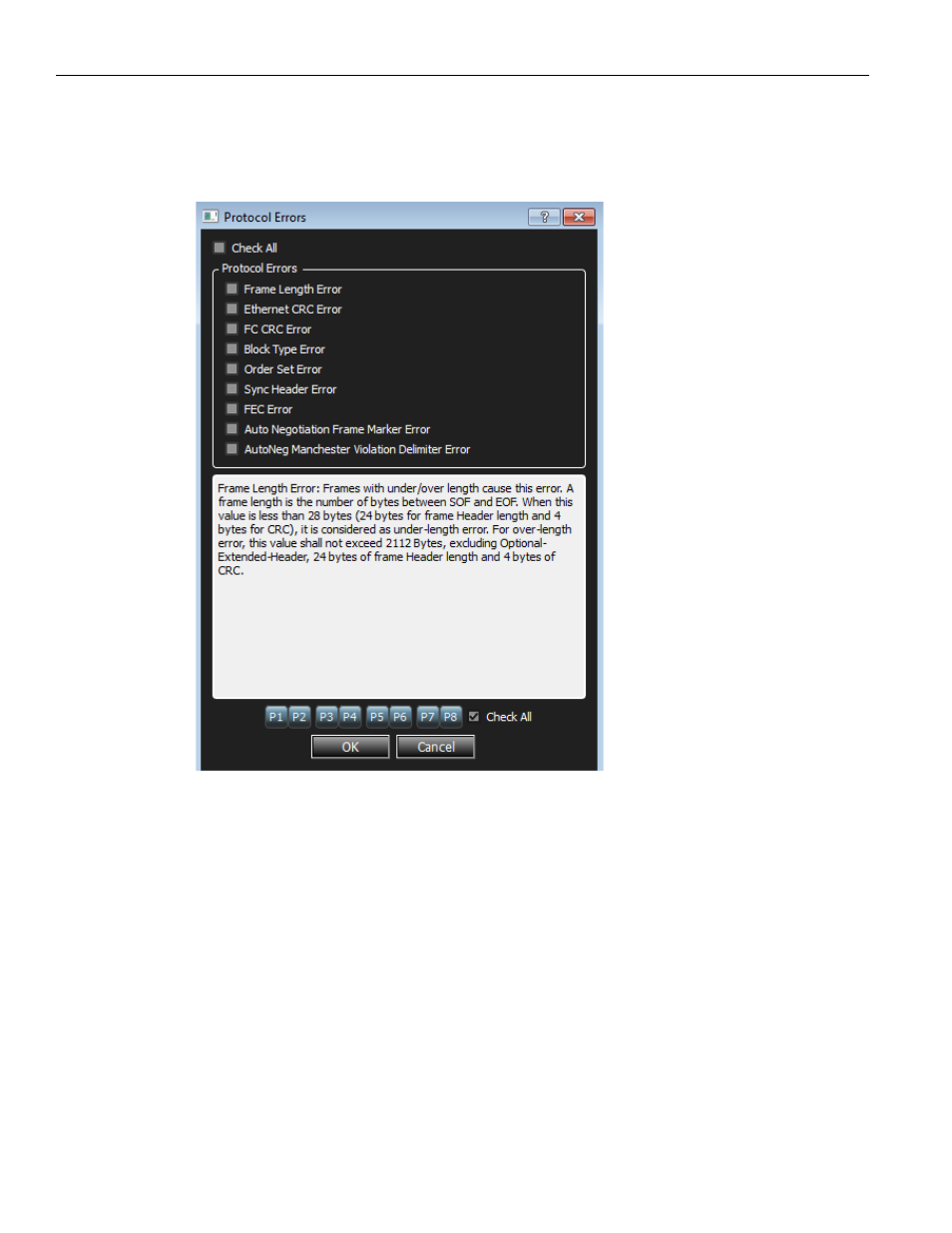

Figure 2.73: Protocol Errors Dialog
Select the desired protocol errors or click on the Check All box to select all the errors.
Enter the count of the expected number of occurrences. Check the Check All box to
select ports P1 through P8 or individually select ports.
2.6.20 FC Patterns (Easy Mode)
Timers/External
Selecting a timer for a trigger in the Any Trigger Mode limits the time that the analyzer
looks for selected triggering conditions before triggering. The timer activates when the
Project runs. If none of the selected triggering conditions occurs during the timer’s active
time, the Analyzer triggers at the end of the time set for the timer.
