SierraNet M168 User Manual 109
Trigger and Filter Settings in Easy Mode Teledyne LeCroy
Other LLC-IEEE802.ID patterns available are:
 Bridge Protocol Data Unit (BPDU)
 Configuration BPDUs
 Multiple Spanning Tree BPDUs (MSTP)
 Rapid Spanning Tree BPDUs (RSTP)
 Topology Change Notification BPDU (TCNP)
 Variable Length Any SCSI Cmd
 Variable Length For Long LBA 32‐Byte Any SCSI Cmd
 GARP Multicast Registration Protocol (GMRP)
 GARP VLAN Registration Protocol (GVRP)
 Generic Attribute Registration Protocol (GARP)
2.6.18 Trill Frame

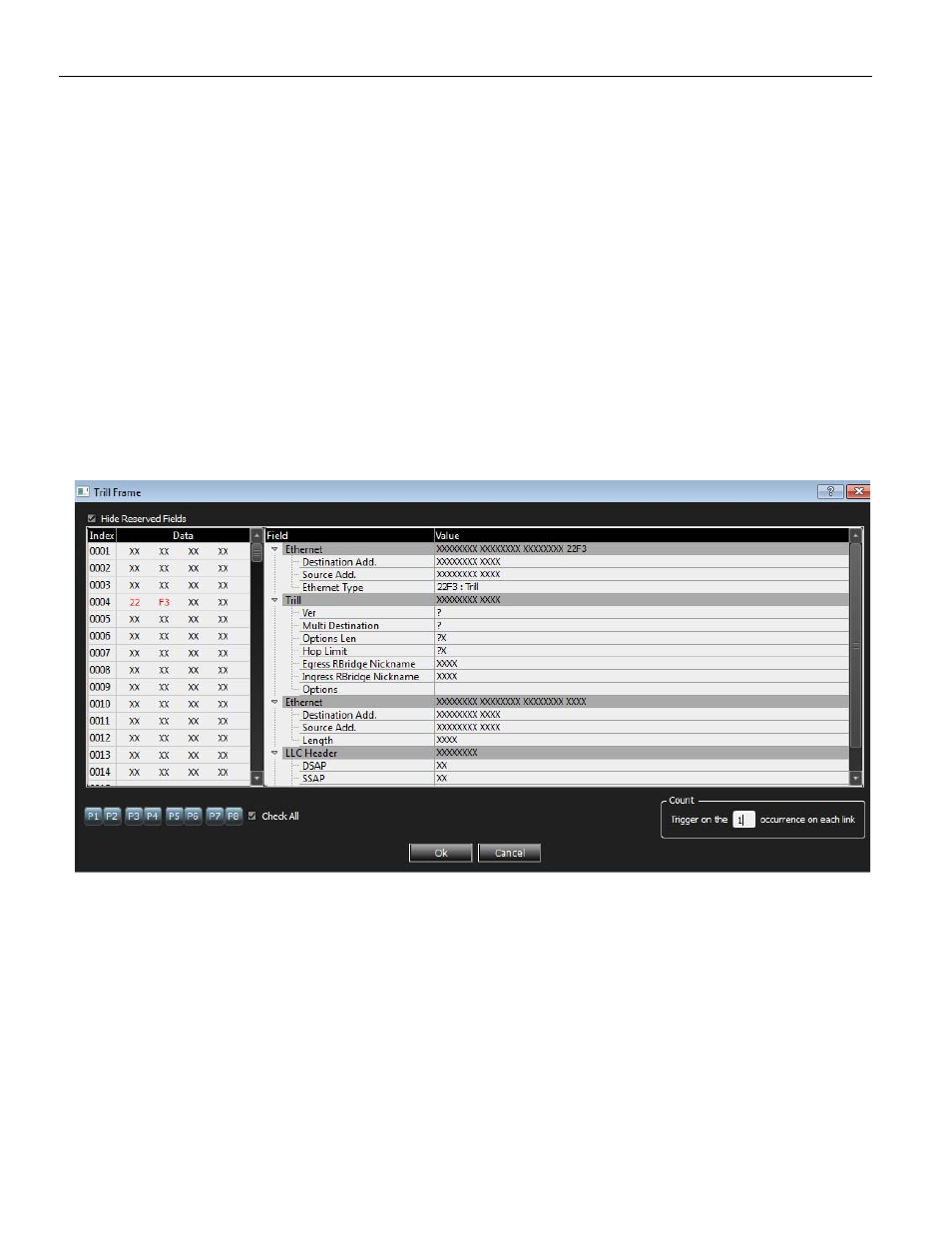

Double‐click Trill Frame to open the dialog.
Figure 2.72: IP Frame Dialog
Enter the values for the Ether header, Trill and the count of the expected number of
occurrences. Check the Check All box to select ports P1 through P8 or individually select
ports.
