Trigger and Filter Settings in Easy Mode

Teledyne LeCroy

Ordered Set

Double‐click Ordered Set to open the Order Set dialog.

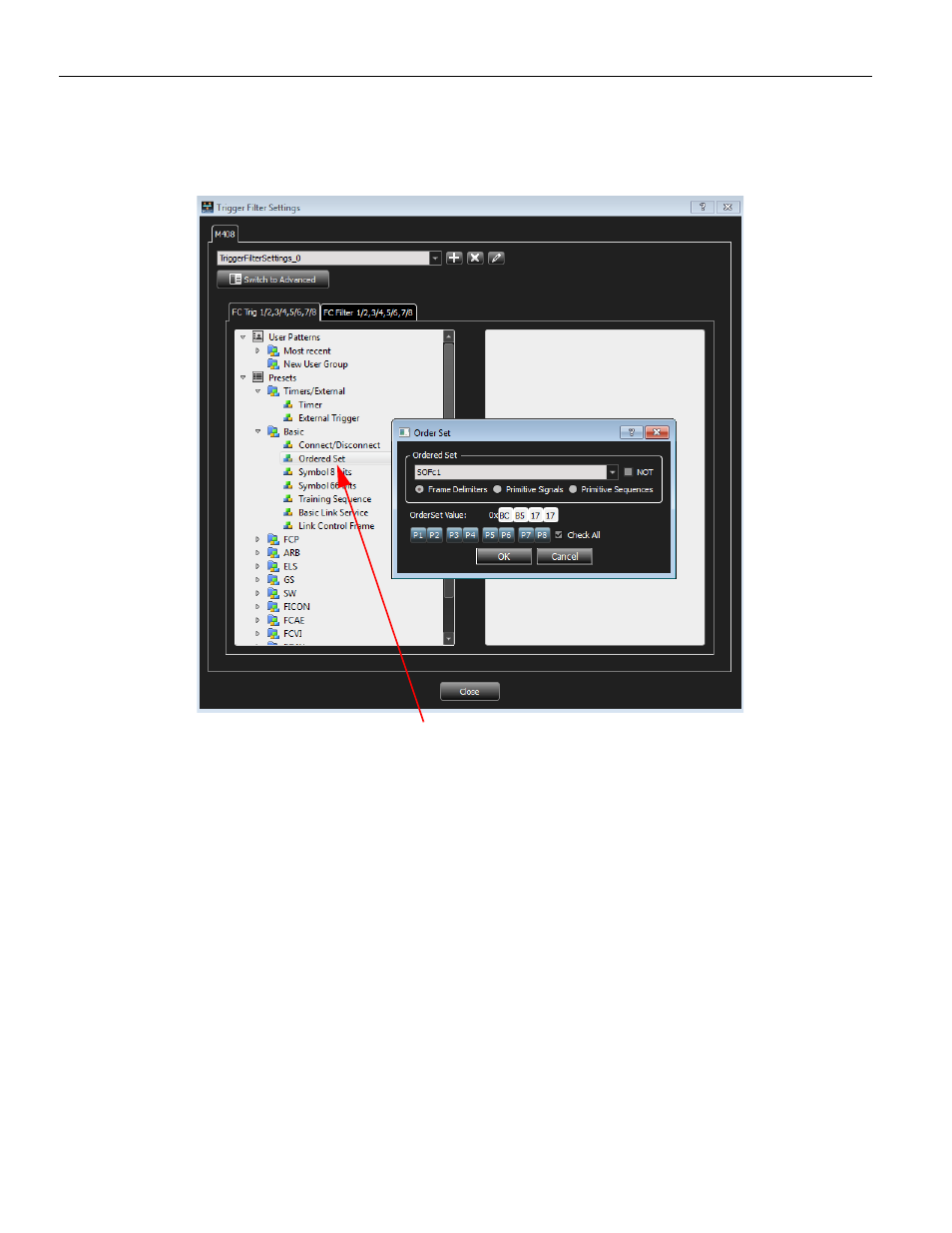

Figure 2.76: Order Set Pattern Dialog

Select the values for the Ordered Set from the drop‐down list. Select Frame Delimiters,
Primitive Signals and Primitive Sequences as applicable. Check the Check All box to select
ports P1 through P4 or individually select ports.
