LeCroy Corporation

InFusion Scenarios

190

SierraNet M168 Protocol Analyzer User Manual

Click the Add State button to drag and drop events in the Sequence 1 and Sequence 2
panels and assign actions to them. If Actions are not assigned a yellow Caution message
displays. If invalid actions are assigned then a red Warning icon displays.

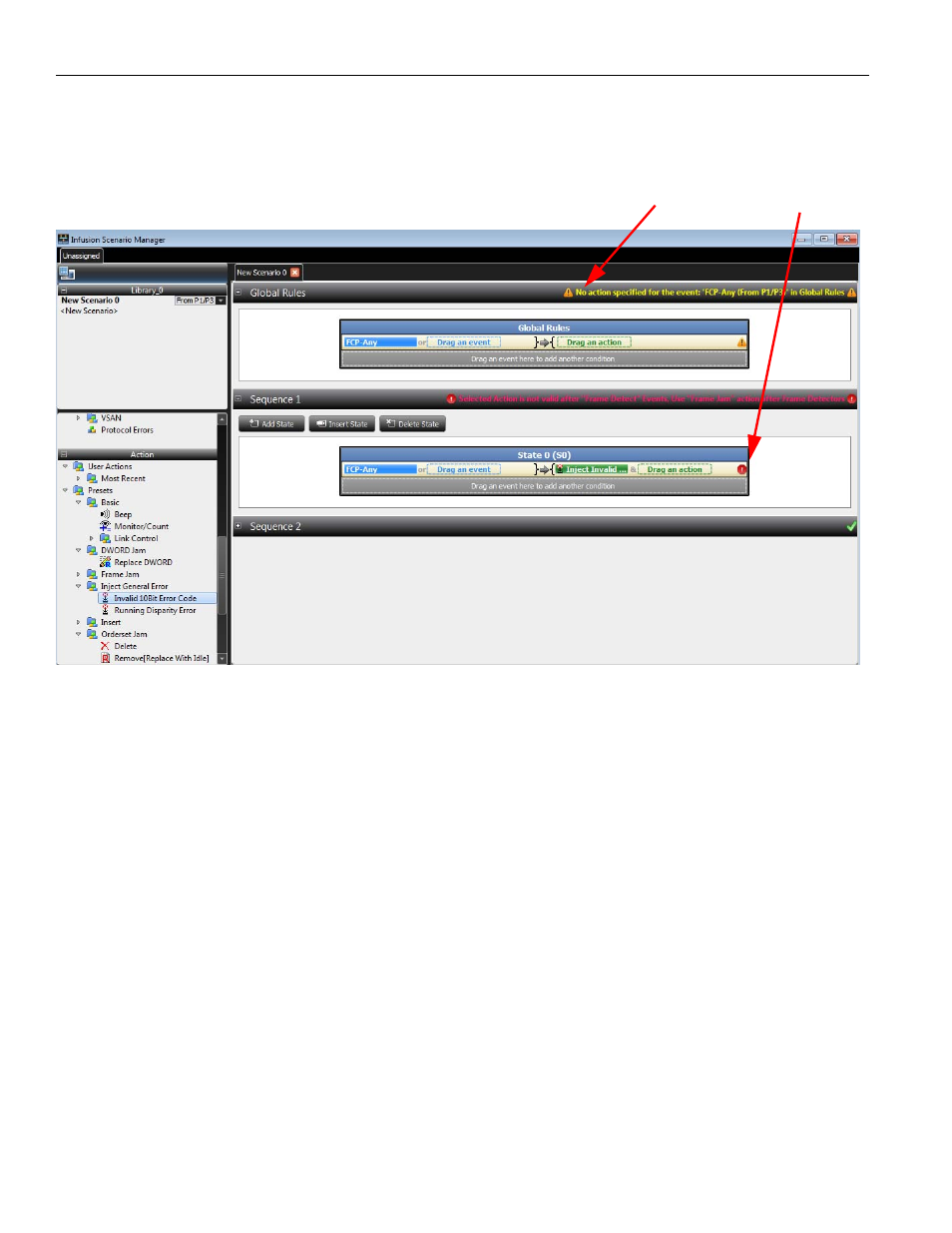

Figure 4.4: Add State InFusion Scenario Manager
