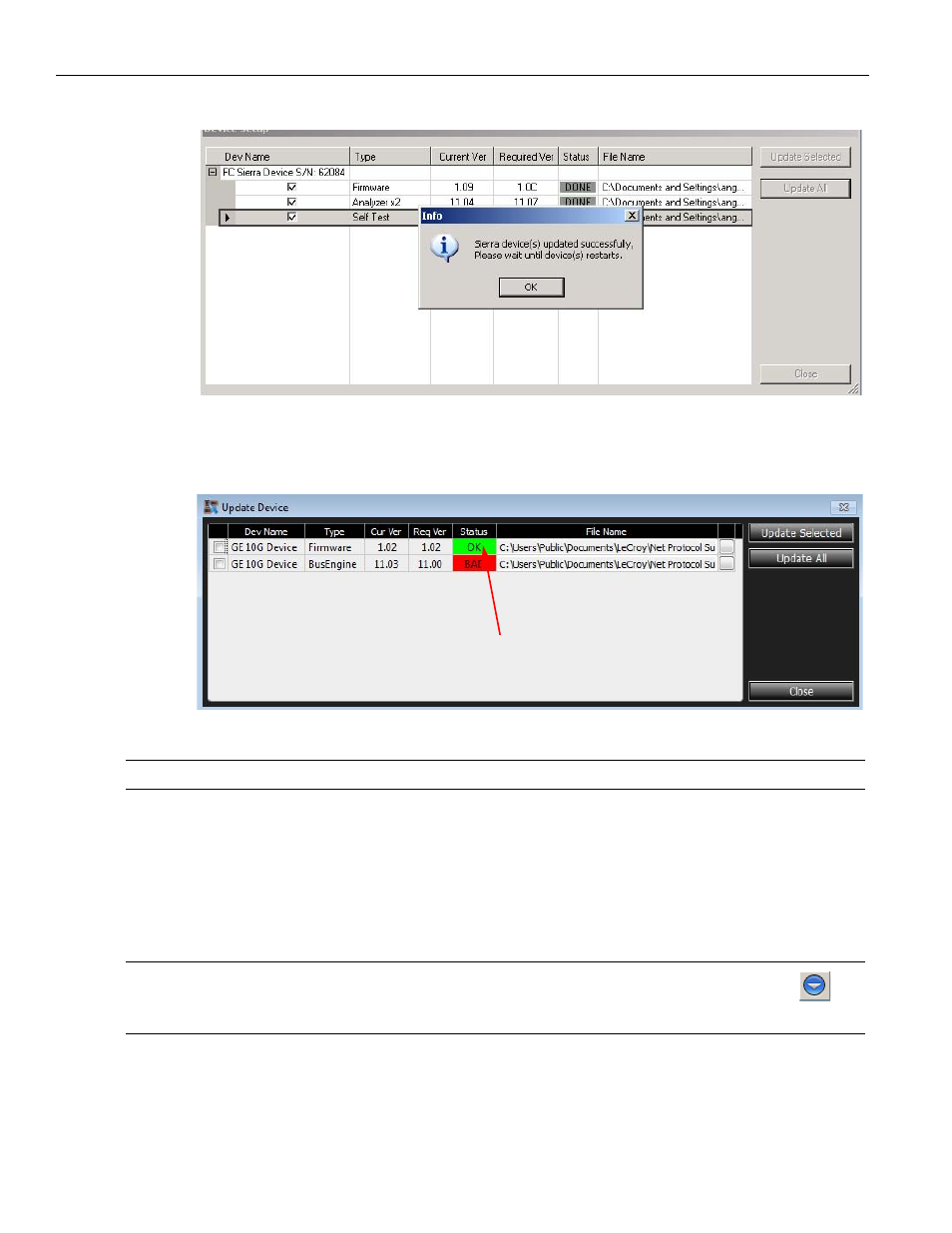

Figure 1.25: Info Dialog
Then the update is complete.
Figure 1.26: Device Setup Dialog with OK Device Status
Note: Do not shut down or power cycle the analyzer during this process.
1.7 Protocol Analyzer
To use the software for protocol analysis, first select File > New Project for a new project
or File > Open to open an existing protocol analysis .gep file. (see
“Protocol Analysis” on
page 35. ) You can also open a .get example file. Example files are in the Examples folder.
You can also select File > Recent Projects to open a project you had recently saved.
Note:
Select File from the main menu Analyzer Menu Bar or click on the Hide Menubar icon and
select File > Open. Clicking the Alt key toggles showing/hiding the Analyzer Menu Bar.
The software menus and toolbar options are explained in detail in “Software Menus and
Toolbar” on page 37 .
For more information on Analyzer Settings refer to “Analyzer Settings” on page 50.
