Teledyne LeCroy Analyzer Settings
56 SierraNet M168 User Manual
In the FC 16G PE Detection Tab y ou can select which Protocol Errors the analyzer will show
and which will be ignored. Select one or more protocol errors or select the Check All box
to select all. Enter the Number of Segments in the field.

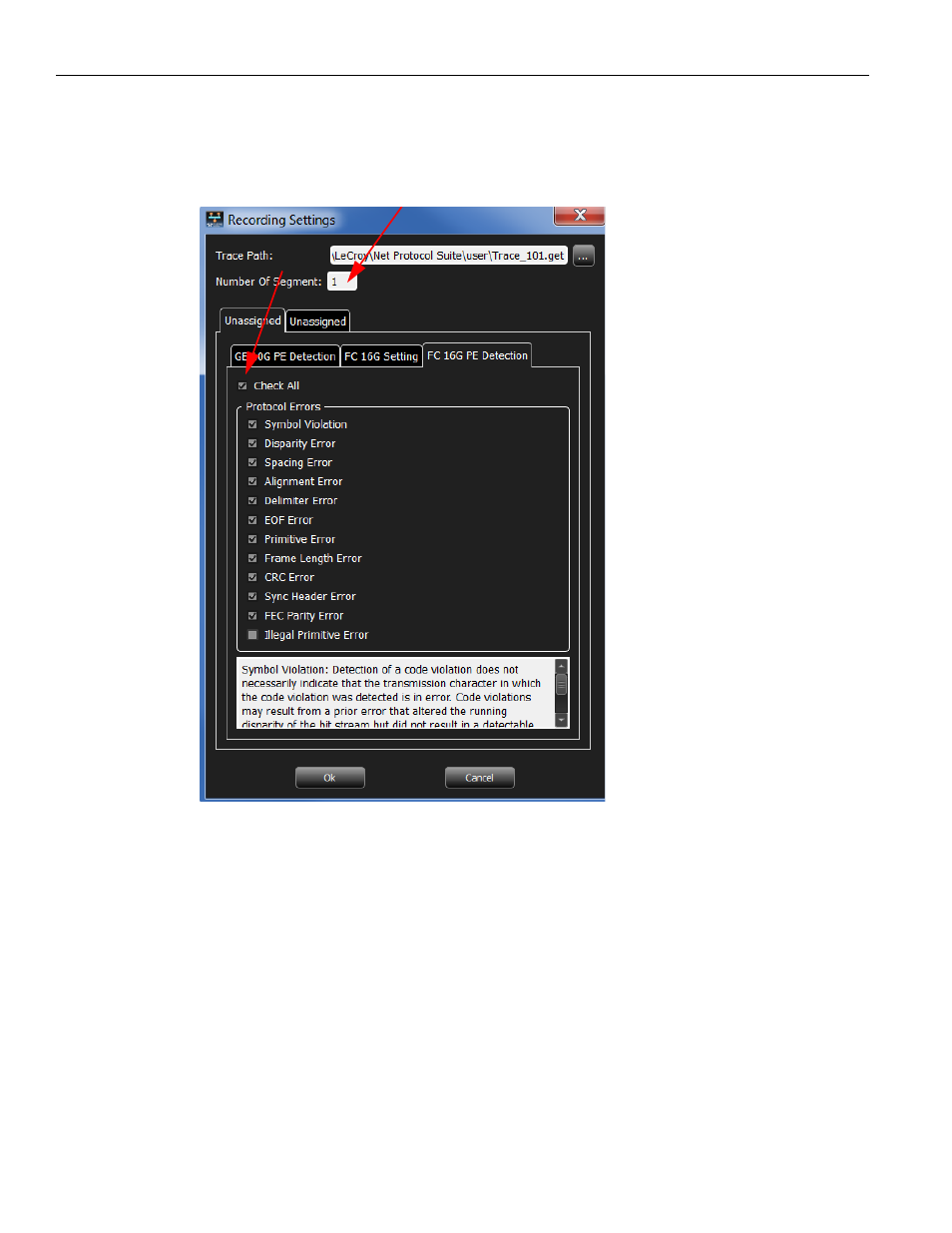

Figure 2.28: FC 16G PE Detection Tab - Recording Settings Dialog
2.5.5 Trigger/Filter Settings Pane
Use the Trigger/Filter Settings pane to select Snapshot or Event Trigger mode and choose
the Trigger Filter settings. The default mode is Snapshot. See
“Trigger and Filter Settings
in Easy Mode” on page 57 for more information.
You can configure the following settings from this dialog:
 Select New from the dropdown menu to create new trigger filter settings
(
Figure 2.30 on page 58 ). The Trigger Filter Settings dialog displays a name add‐
ing a new sequential Trigger Filter Setting. You can change the default name by
typing a new name.
 Select Manage from the dropdown menu to manage the trigger filter settings
(
Figure 2.30 on page 58 ).
 Choosing the Event Trigger option enables Trigger Position to set it manually. You
