Teledyne LeCroy Trigger and Filter Settings in Easy Mode
100 SierraNet M168 User Manual
 FCAE‐VI(SEND_RESP)
 FCAE‐VI(WRITE_RESP)
FCAV Patterns
 FCAV(Simple)
 FCAV(Extended)
2.6.7 FIP Patterns
For any FIP pattern, double‐click the pattern name, for example, double‐click Discovery
Solicitation from ENode to open the dialog.
Note: All the screen captures for the FIP patterns are similar to the screen capture shown below.

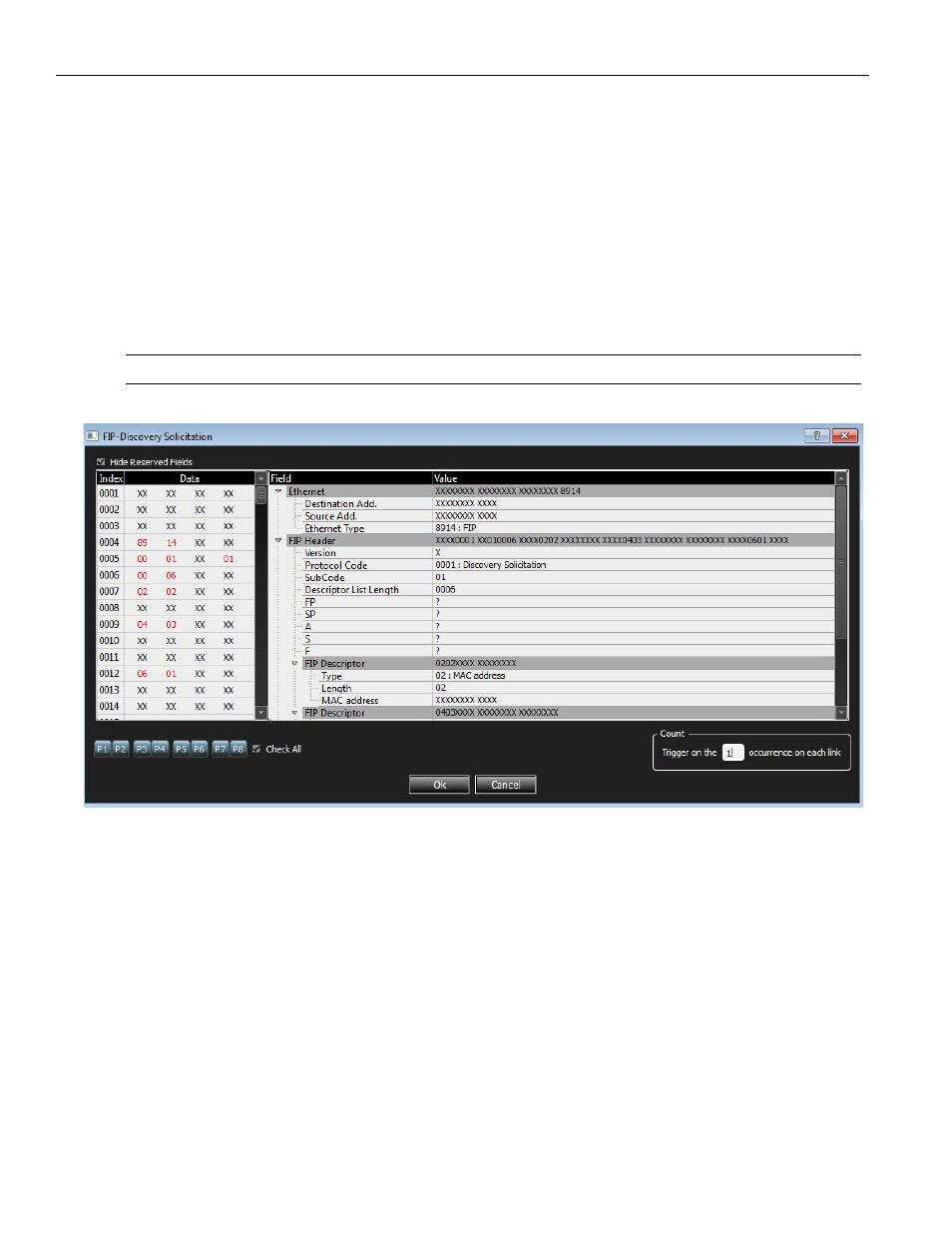

Figure 2.64: FIP Discovery Solicitation from ENode Pattern Dialog
Enter the values for the Ether header, FIP Header and the count of the expected number
of occurrences. Check the Check All box to select ports P1 through P8 or individually
select ports.
The following FIP patterns are available:
 Discovery Solicitation from ENode
 Discovery Solicitation from FCF
 Discovery Advertisement
 FIP FLOGI Request
 FIP FLOGI LS_ACC
 FIP FLOGI LS_RJT
 FIP NPIV FDISC Request
 FIP NPIV FDISC LS_ACC
 FIP NPIV FDISC LS_RJT
